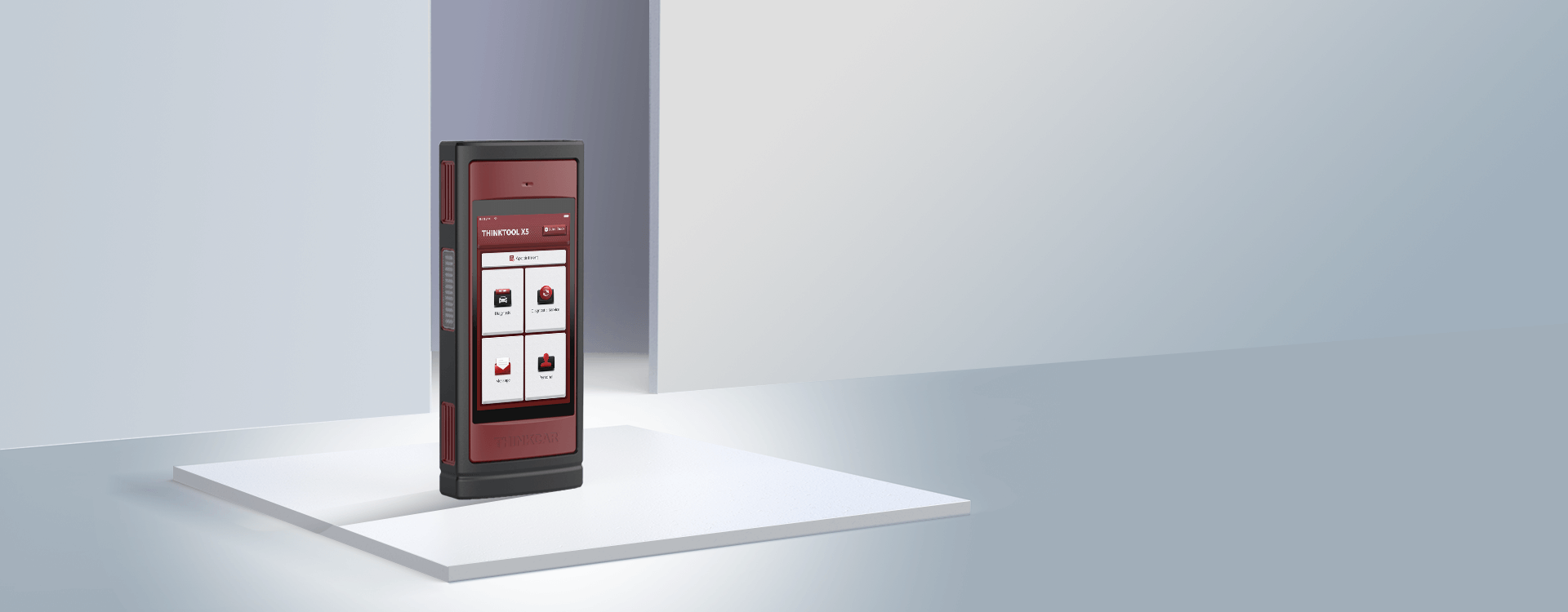

THINKTOOL X5

CHANGE A WAY TO DIAGNOSE

TO SEE, TO HEAR, THE FIRST REAL-TIME REMOTE DIAGNOSTIC TOOL.

Support Video Call
& Voice Call
Support Remote
Control
Certificate Online
Technicians
Onsite Diagnose
for All System

THINKCAR Dual Remote Technology!

Innovative, Fast and Reliable

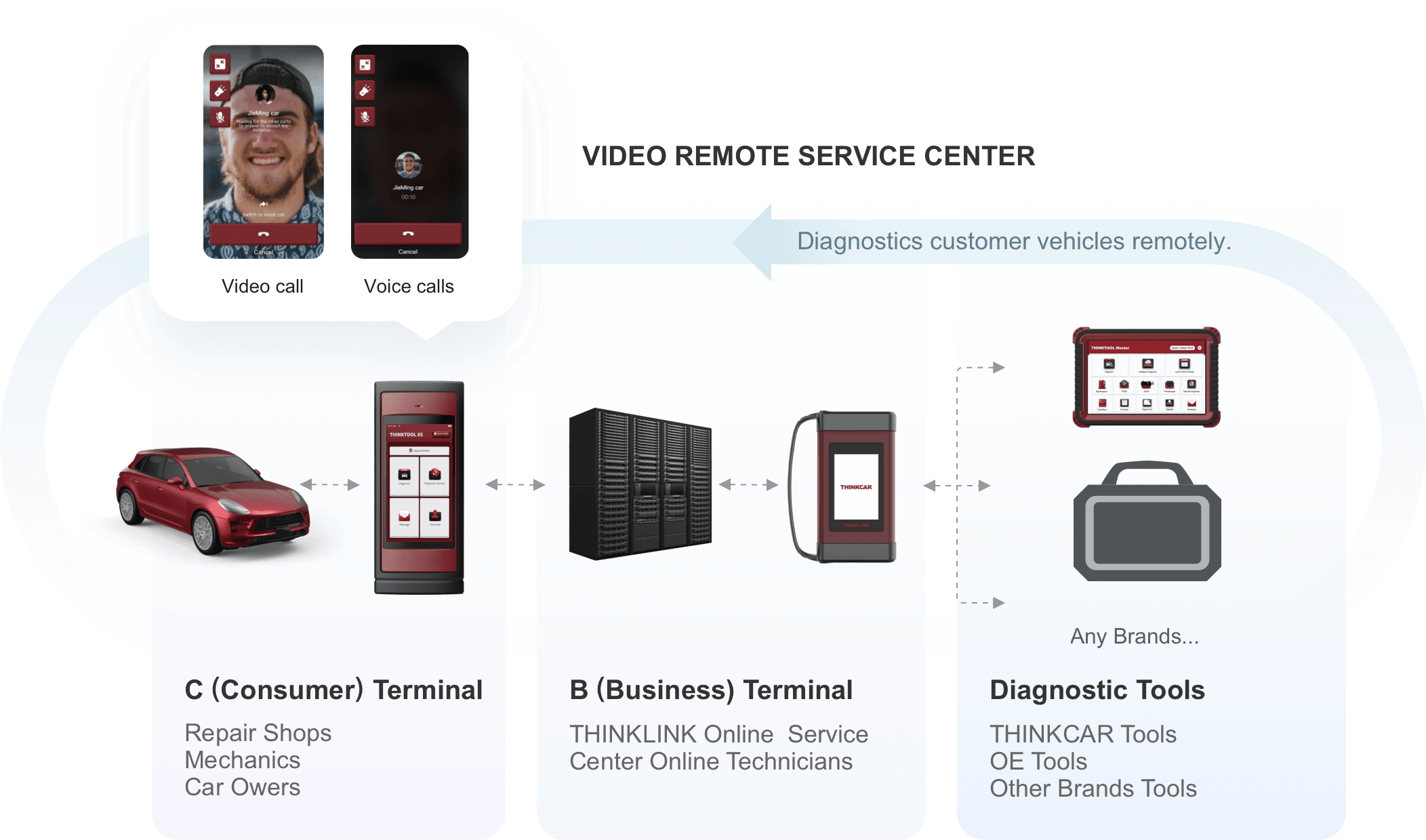

Video Remote Mode

Consumers ( Repair shops, automotive technicians) can use X5 to make
video calls or send voice/ text to online technitians, online
technitians can use THINKCAR or other brand tools to diagnostics
customer vehicles remotely.

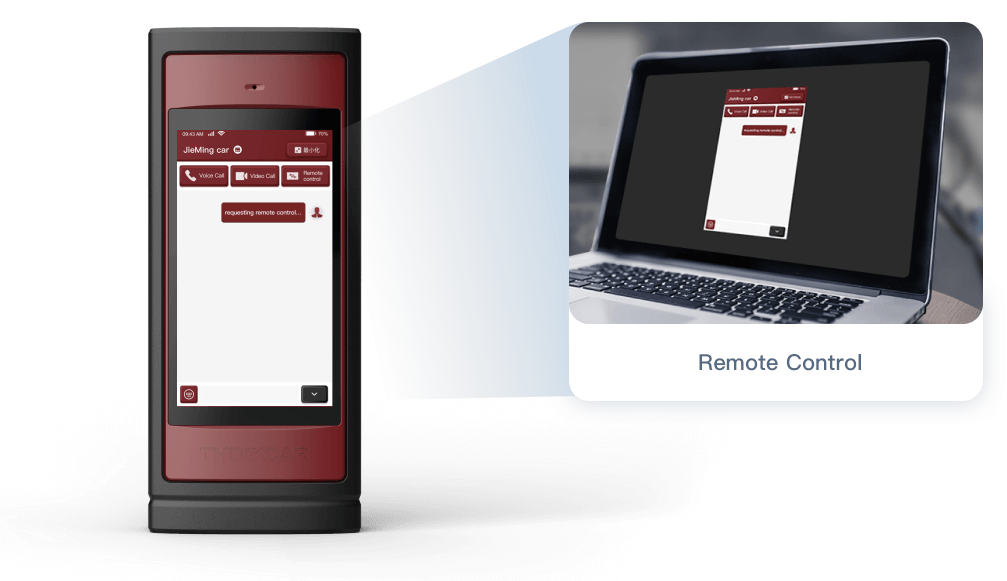

Remote Control Mode

When the internet speed is low, consumer can use X5 to initiate remote
control via Sunflower application. Online technician can remote control
X5 to diagnose consumer vehicles.

Please download the

SUNFLOWER remote controller in

https://www.thinkcar.com/downloads

Connet with Certificate Online Technicians

X5 provide numerous certificate online technicians. Just one call to
connect global online technicians.

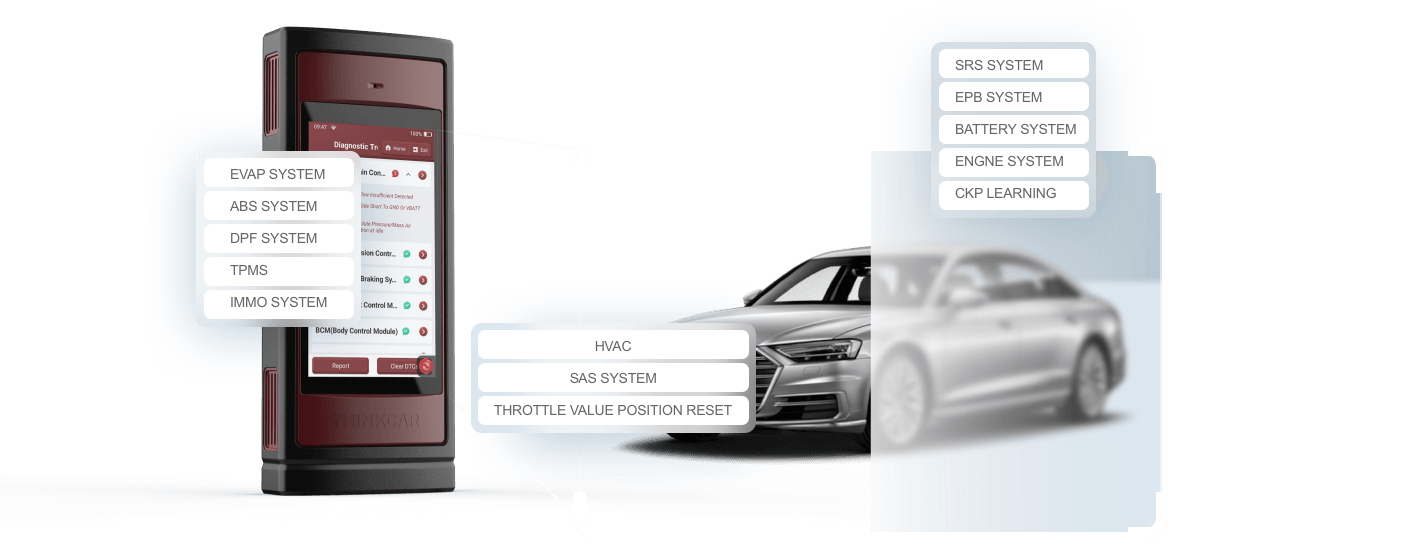

Advanced Onsite Diagnose for All System

Apart of the remote diagnostic technology, X5 is also a powerful onsite
diagnose tool. Integrated advanced diagnose functions includes read and
clear DTCs, live data stream, bi-directional control, actuation test,
special functions and more for 220+ passenger vehicles worldwide .

Read Codes
Clear Codes
Live Data Stream
Special Function
Bi-directional Control
Actuation Test

Specifications

Operating System
Android 10
Camera
13MP Rear/5MP Front
Screen Size
5-inch
ROM/RAM
64G/4G
Battery
5200 mAH/7.4V
Communication
4G/ WiFi/ Ethernet

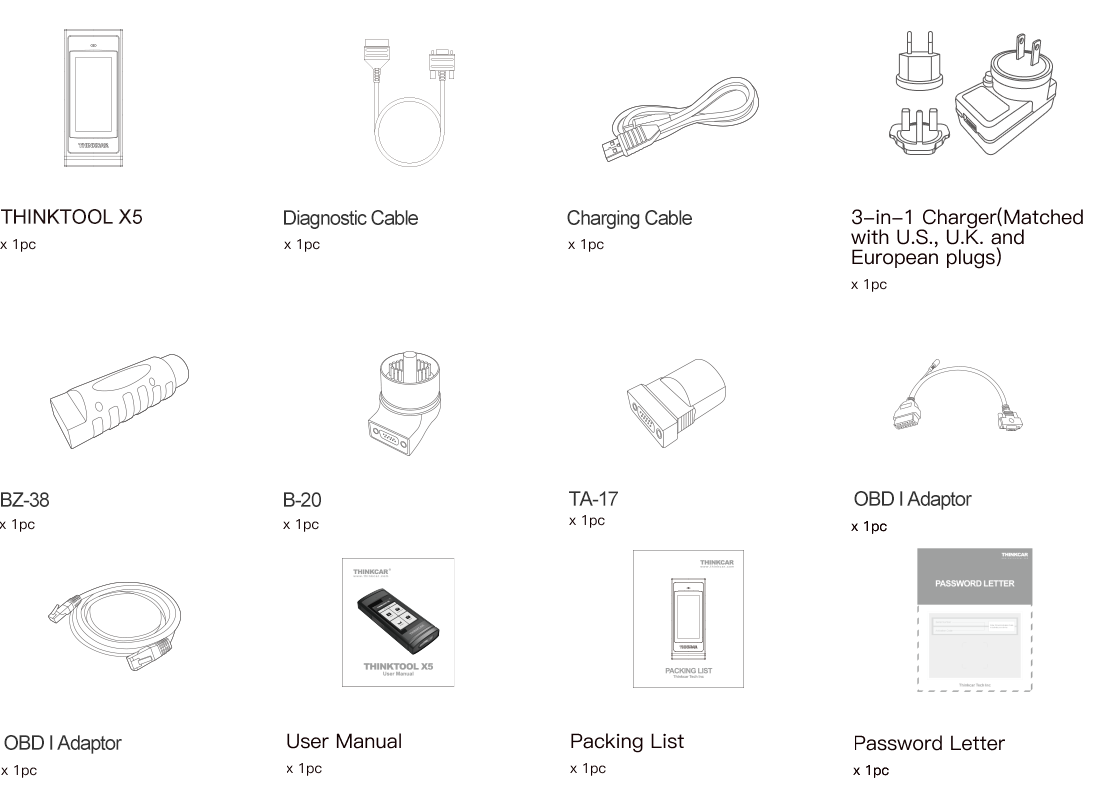

Accessories

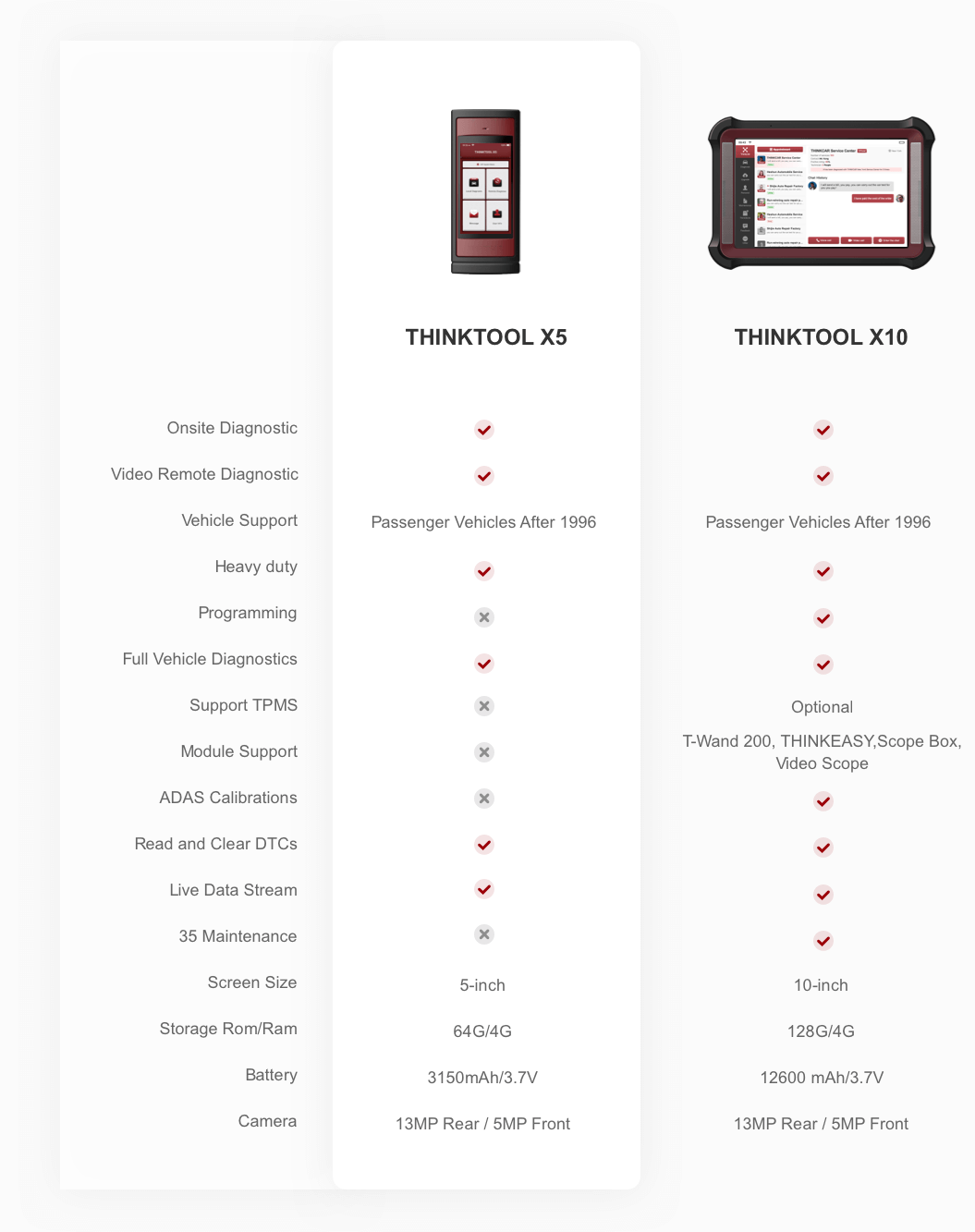

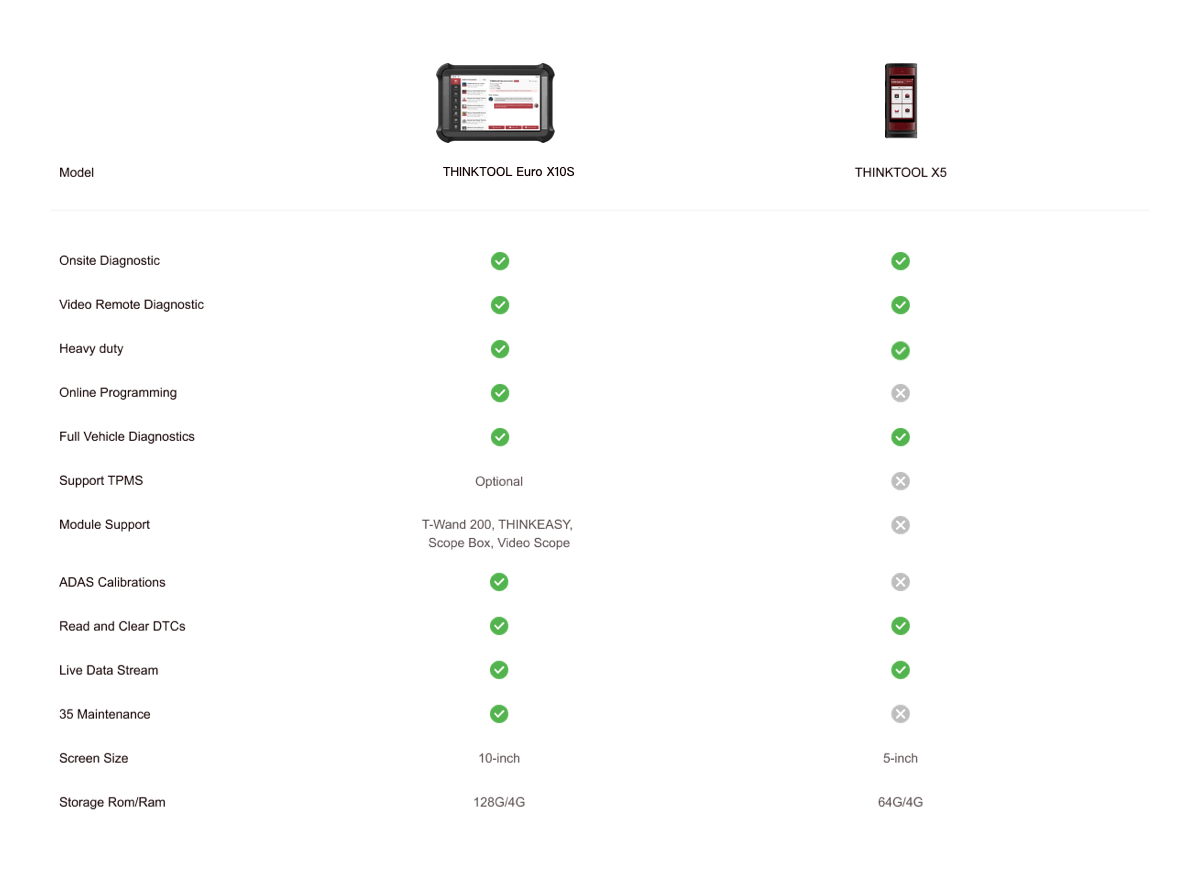

Comparisons



Specifications

Screen Size 5-inch
Camera 13 MP Rear/ 5MP Front
Battery 3150 mAh/ 3.7V
Storage Rom/ Ram 64G/4G
Operating System Android 10

FAQ

Insufficient contact of VCI with vehicle OBD port

Please replug the VCI.

Unfix the firmware.

Click “settings” and then “firmware repair” icon to upgrade the firmware.

Bad contact of the VCI

Please reinsert the VCI and try again.

Problem with Bluetooth pairing.

Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.

The diagnostic tablet is left unused for a long time and the battery runs out of power.

Boot by long-pressing the ON/OFF button after 2 hours charging.

Adapter failure.

Please confirm whether the adapter is properly connected to power supply, or the interface contact is in the right place.

No network on the diagnostic tablet.

Check if the diagnostic tablet is connected to good network.

Get prompted that the email address has been signed up.

1. Sign up a new account;2. Retrieve the password and sign in with the original account.

Fail to receive the verification code during sign-up.

1. Check if the email address is correct;

2. Resend a new verification code.

Username or password incorrect.

1. Check if the username or password is correct; 2. Reset your password.

Server failure.

Please try later due to server maintenance.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

The serial number and activation code are entered incorrectly

Please check and confirm whether the serial number and activation code are correctly entered (12 digits for serial number and 8 digits for activation code).

Activation code is invalid

Please contact THINKCAR service team or regional sales.

Prompt that the configuration is empty

Please contact THINKCAR service team or regional sale.

When the software is upgraded, it prompts that it is not activated.

The diagnostic VCI may not be activated during registration. Please use the serial number and activation code in the password envelope to activate the device. The operation steps are as follows: Click [Settings]-[VCI Activation], and enter the correct serial number and activation code in the interface, and click [Activate]. If you have any questions, please contact after-sales customer service.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

Insufficient storage space

Please uninstall irrelevant applications: select and delete uncommon software in “Software cleaning module” under “Settings” menu.

Server problem

Server under maintenance. Please try again later.

Poor contact of vehicle OBD internal circuit

Please check if OBD pins are all in good conditions.

Vehicle battery heavily loss of electricity

Please recharge of replace the battery.

VCI damage

Please provide proof video to THINKCAR service team for processing.

How to save power?

1)Please sleep the screen,if the tablet isn’t been used. 2)Reduce screen standby time by setting. 3)Reduce the screen brightness by setting.

Where can I purchase a THINKCAR device?

Please contact your local dealers listed in www.thinkcar.com to buy THINKCAR tools.

Can I dis-active my diagnostic tools?

Cancellation of registration is not allowed.If there are any special circumstances, the dealer will submit the SN and application reason to the company to apply, and the dealer will assume that the customer complaint caused by the cancellation of the registration will be assumed by the dealer.

Can the account password be changed?

Modification is not allowed, customers are advised to modify by themselves by retrieving the password
