THINKTOOL Master CV

10-inch Intelligent Diagnostic Tool For Heavy Duty, Medium Duty and Commercial Vehicles!

190+ Commercial Vehicle Brand
13+ Non-Standard Connectors
Intelligent THINKDIAG HML VCI
Full System Full Function

Support 190+ Commercial Vehicle Brand

THINKTOOL Master CV is an intelligent diagnostic tool for heavy duty, medium duty and commercial vehicles based on 10-inch HD touch screen, Android 10 operating system. Master CV provides complete diagnostic solution for technicians, such as full vehicle scan, bi-directional control, read and clear fault codes, live data stream, actuation tests, special functions, maintenance reset, DPF regenerations etc.

ANKAI BEIBEN CAMC CTRUCKZY CUMMINS
DACHAI DAF DELPHI DENSO_DIESEL DFACZY
DFL DFYYC DIESEL DS_CHANGCHENG DS_CHRYSLER
DS_CITROEN DS_FIAT DS_GM DS_MAZDA DS_MITSUBISHI
DS_NISSAN DS_PEUGEOT DS_SPRINTER DS_TOYOTA DS_USAFORD
DS_VW FAWJIEFANG FOTONAUMAN GUANGQIHINO HD_ABS
HD_AGCO HD_AGRICULTURAL HD_AISIN HD_ALLEGRO HD_ALLISON
HD_ASHOK_LEYLAND HD_ASTRA HD_AUTOSEARCH HD_BATTISTI HD_BCI
HD_BENDIX_ABS HD_BENZ HD_BERKSHIRE HD_BHARATBENZ HD_BLUEBIRD
HD_BONLUCK HD_BOSCH HD_BREMACH HD_CAPACITY HD_CASE
HD_CATERPILLAR HD_CHAMPION HD_CHANGAN HD_CHANGCHAI HD_CHAOCHAI
HD_CLAVAL HD_CLOOINS HD_COACH HD_COBUS HD_CREDO
HD_CTRUCKTY HD_DAYUN HD_DEMO HD_DETROIT HD_DEUTZ
HD_DFAC HD_DFLZ HD_DINA HD_DOOSAN HD_EATON
HD_ECTEK HD_ECU_BD HD_EICHER HD_ELDORADO HD_ELKHART
HD_ENC HD_EONE HD_ERF HD_EUROVIN HD_FERRARA
HD_FLEETWOOD HD_FLEXICOIL HD_FORESTRIVER HD_FREIGHTLINER HD_FUSO
HD_GILLIG HD_GOLDENDRAGON HD_HALDEX_ABS HD_HIGER HD_HINO
HD_HOLIDAY_RAMBLER HD_HYUNDAI HD_IC HD_INTERNATIONAL HD_IRISBUS
HD_IRIZAR HD_ISUZU HD_IVECO HD_JAC_HEAVY HD_JAC_LIGHT
HD_JCB HD_JMC HD_JOHNDEERE HD_KALMAR HD_KAMAZ
HD_KENWORTH HD_KINGLONG HD_KME HD_KNORR HD_KOBELCO
HD_LAFRANCE HD_LAIDONG HD_MACHINERY HD_MAHINDRA HD_MAN
HD_MAXXFORCE HD_MAZ HD_MCI HD_MILLER HD_MWM
HD_NABI HD_NEOPLAN HD_NEWFLYER HD_NEWHOLLAND HD_NOVABUS
HD_NOX HD_OBD HD_ORION HD_OSHKOSH HD_PACCAR
HD_PETERBILT HD_PIERCE HD_PREVOST HD_QUANCHAITY HD_RENAULT
HD_RENEGADE HD_SCR HD_SETRA HD_SIDA HD_SITCAR
HD_SPARTAN HD_STARCRAFT HD_STARTRANS HD_STERLING HD_STEYR
HD_SUNLONG HD_SUNWIN HD_TATA HD_TEMSA HD_THOMASBUILT
HD_TRAILER HD_VANHOOL HD_VOITH HD_VOLVO HD_VOLVO_CE
HD_VOLVO_PENTA HD_WABCO_ABS HD_WAW HD_WESTERN_STAR HD_WINNEBAGO
HD_WUZHOULONG HD_XICHAI HD_XUGONG HD_YANGCHAI HD_YQSH
HD_YUFENG HD_ZF HD_ZHONGTONG HONGYAN HUANGHAI
JAC_HD JINBEIQKZY KAMA KOBELCO MACK
PERKINS QIRUIWANDA SCANIA SHACMAN SHANGCHAI
SHANGHAIHINO SHAOLINAUTO SIEMENS_DIESEL SILVERBUS SINOTRUK
UD WP_DIESEL YAXING YUCHAI YUNNEI
YUTONG HD_NATURE

Equipped with 13 Non-Standard HD Connectors

1

Type II OBD-9

2

CAT-9

3

BENZ-14

4

IVECO-38

5

MAN-37

6

OBD-6

7

OBD -16

8

IVECO-30

9

MAN-12

10

RENAULT-12

11

ISUZU-3

12

VOLVO-8

13

ISUZU-20

Full System Full Function

Integrated Commonly Used Special Function

Parameter Calibrations

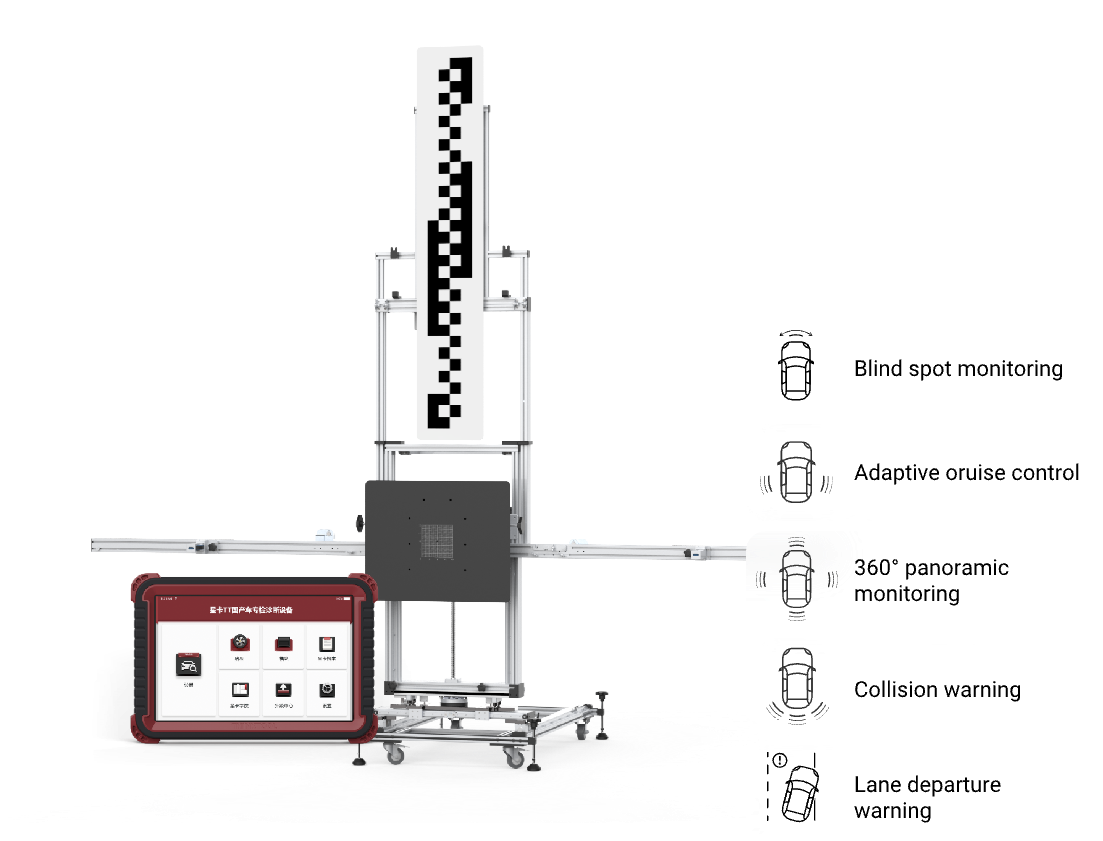

Accurate ADAS Calibrations

An advanced driver-assistance system (ADAS) is a group of electronic technologies that assist drivers in driving and parking functions. ADAS use automated technology, such as sensors and cameras, to detect nearby obstacles or driver errors, and respond accordingly. It offers various safety functions depending on what are equipped with a vehicle, such as ACC, LDW, AVM, BSD system calibrations function.

Remarks:

The THINKTOOL Master CV supports to calibrate vehicles ADAS systems with THINKCAR HD ADAS calibration tool.

Extensive Functional Modules

Video Scope

Printer

Scope Box

Battery Tester

Thermal Imager

Worklight

Remarks:The Functional Modules Are Sold Seperately.

Specifications

Operating System Android 10
Camera 8MP Rear
Screen Size 10-inch
ROM.RAM 128G/4G
Battery 12600mAh/3.7V
Processor 2.0GHz| Quad Core
Bluetooth 5.0
Wi-Fi WLAN 802.1 1b/g/n

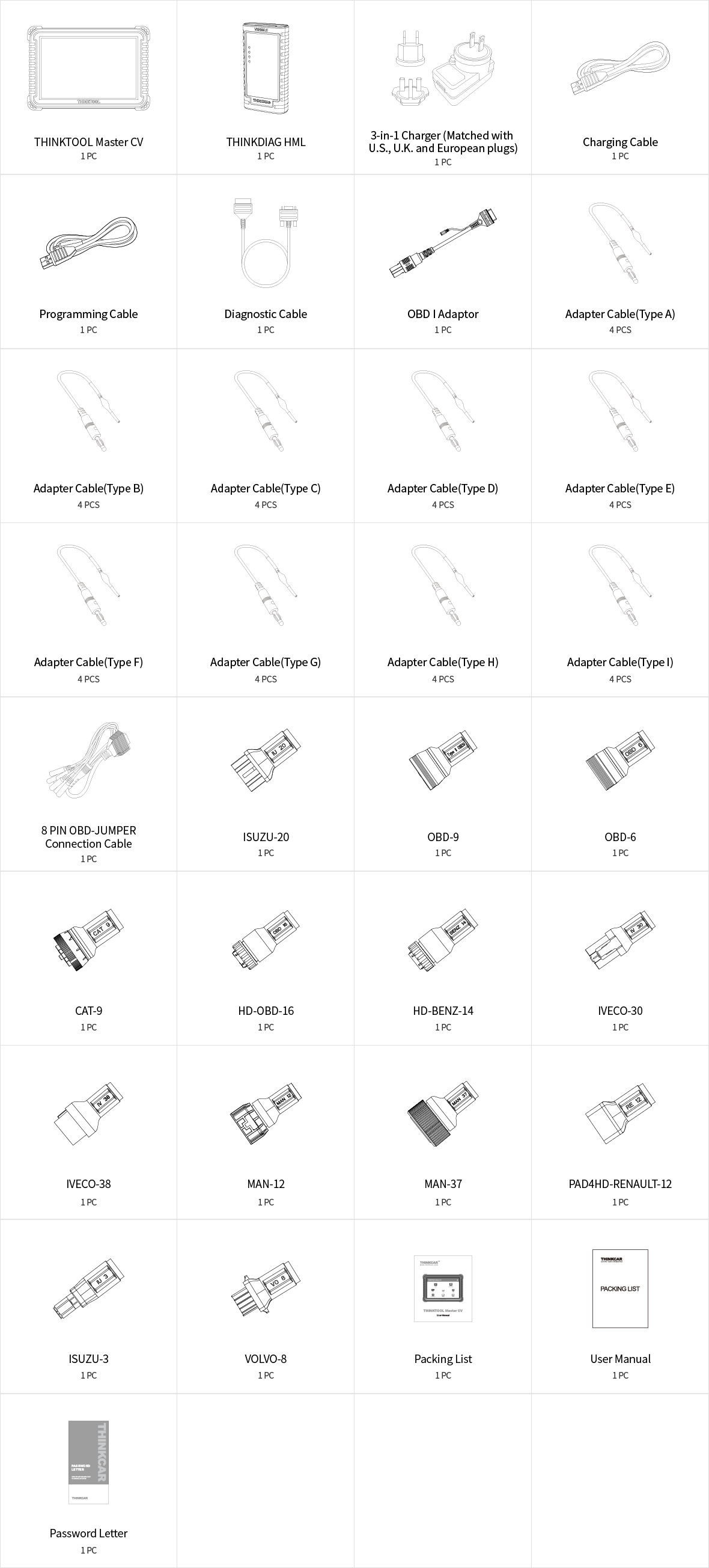

Accessories

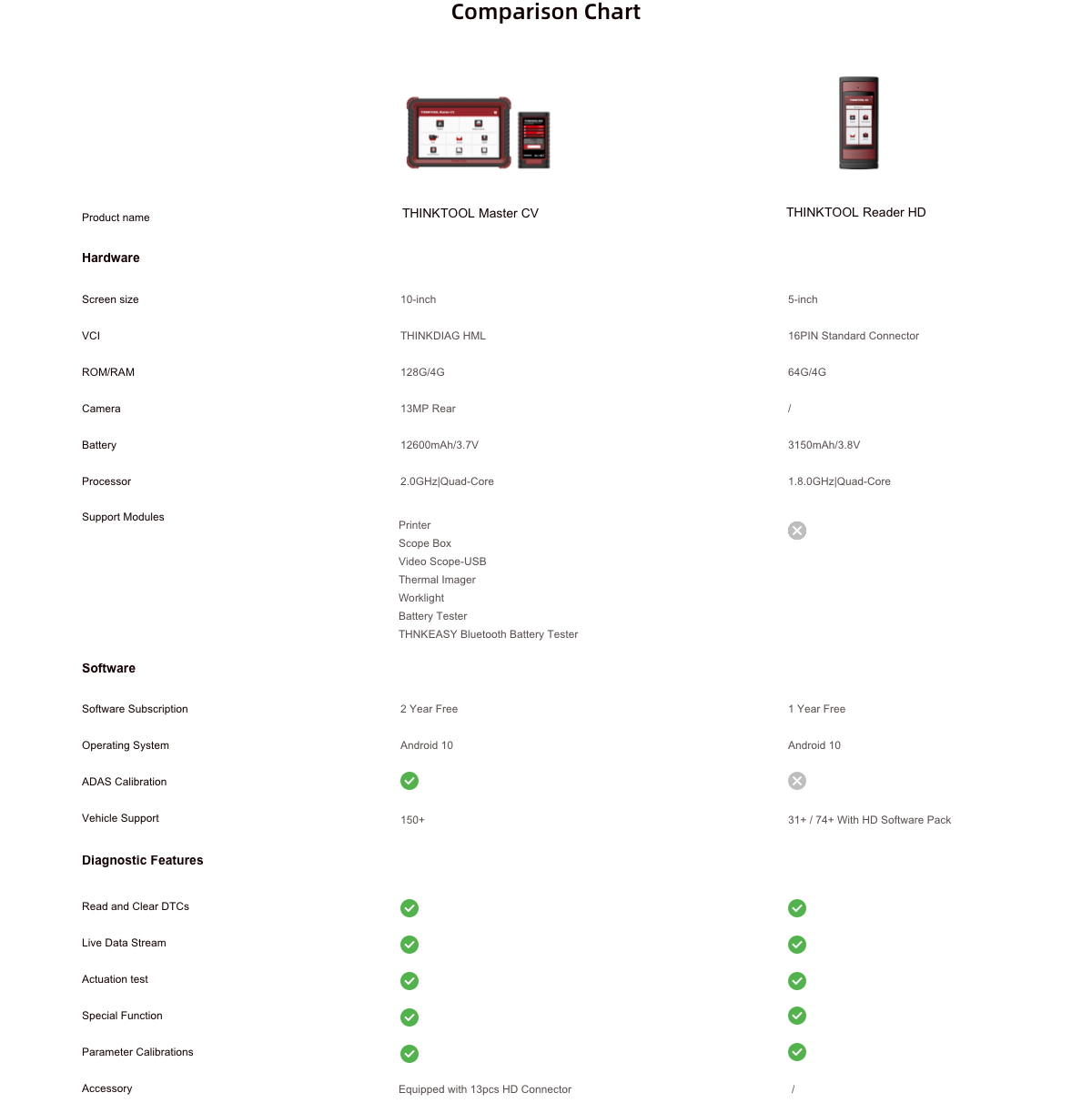

Comparisons



Specifications

Screen Size 10-inch
VCI thinkdiag hml
Battery 12600mAh/3.7V
CPU 2.0GHz| Quad Core
ROM/RAM 128G/4G
Camera 8MP
Operating System Android 10
Software Subscription 2-Year Free Update
ADAS Calibration Supported

FAQ

Insufficient contact of VCI with vehicle OBD port

Please replug the VCI.

Unfix the firmware.

Click “settings” and then “firmware repair” icon to upgrade the firmware.

Bad contact of the VCI

Please reinsert the VCI and try again.

Problem with Bluetooth pairing.

Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.

The diagnostic tablet is left unused for a long time and the battery runs out of power.

Boot by long-pressing the ON/OFF button after 2 hours charging.

Adapter failure.

Please confirm whether the adapter is properly connected to power supply, or the interface contact is in the right place.

No network on the diagnostic tablet.

Check if the diagnostic tablet is connected to good network.

Get prompted that the email address has been signed up.

1. Sign up a new account;2. Retrieve the password and sign in with the original account.

Fail to receive the verification code during sign-up.

1. Check if the email address is correct;

2. Resend a new verification code.

Username or password incorrect.

1. Check if the username or password is correct; 2. Reset your password.

Server failure.

Please try later due to server maintenance.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

The serial number and activation code are entered incorrectly

Please check and confirm whether the serial number and activation code are correctly entered (12 digits for serial number and 8 digits for activation code).

Activation code is invalid

Please contact THINKCAR service team or regional sales.

Prompt that the configuration is empty

Please contact THINKCAR service team or regional sale.

When the software is upgraded, it prompts that it is not activated.

The diagnostic VCI may not be activated during registration. Please use the serial number and activation code in the password envelope to activate the device. The operation steps are as follows: Click [Settings]-[VCI Activation], and enter the correct serial number and activation code in the interface, and click [Activate]. If you have any questions, please contact after-sales customer service.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

Insufficient storage space

Please uninstall irrelevant applications: select and delete uncommon software in “Software cleaning module” under “Settings” menu.

Server problem

Server under maintenance. Please try again later.

Poor contact of vehicle OBD internal circuit

Please check if OBD pins are all in good conditions.

Vehicle battery heavily loss of electricity

Please recharge of replace the battery.

VCI damage

Please provide proof video to THINKCAR service team for processing.

How to save power?

1)Please sleep the screen,if the tablet isn’t been used. 2)Reduce screen standby time by setting. 3)Reduce the screen brightness by setting.

Where can I purchase a THINKCAR device?

Please contact your local dealers listed in www.thinkcar.com to buy THINKCAR tools.

Can I dis-active my diagnostic tools?

Cancellation of registration is not allowed.If there are any special circumstances, the dealer will submit the SN and application reason to the company to apply, and the dealer will assume that the customer complaint caused by the cancellation of the registration will be assumed by the dealer.

Can the account password be changed?

Modification is not allowed, customers are advised to modify by themselves by retrieving the password
