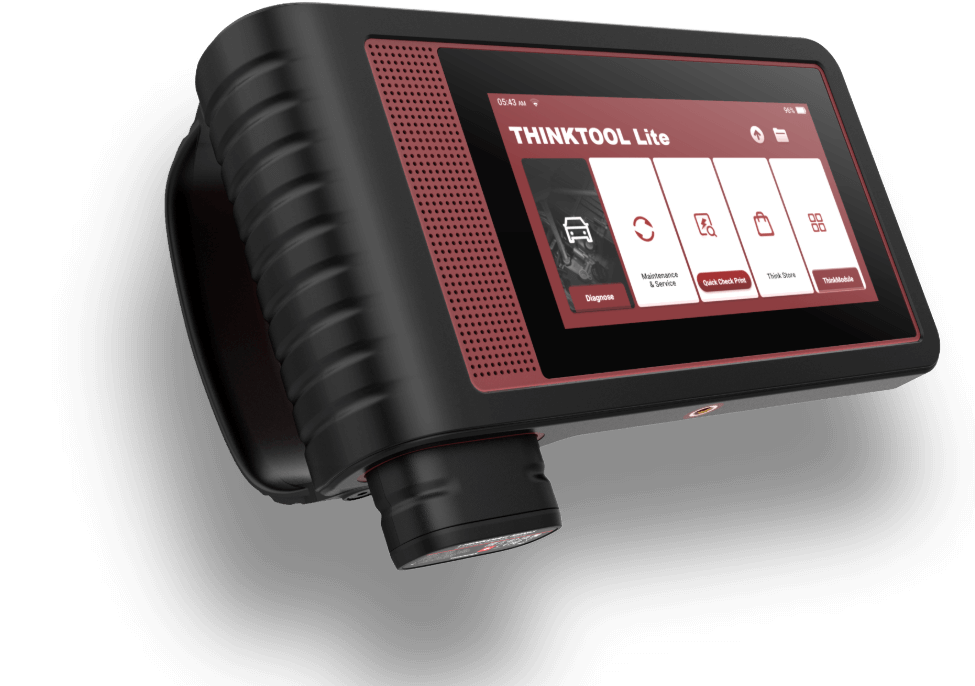

THINKTOOL LITE

6 inches Automotive Diagnostic Tool

THINKCAR

6 inches

THINKCAR

easy to carry

THINKCAR

The most economic tool

OE-LEVEL DIAGNOSTICS

ThinkTool Lite is the most economic diagnostic tool for mechanics, repair shops and DIYers.

THINKCAR

Mechanics

THINKCAR

Repair Shops

THINKCAR

DIYers

Cover 98% 12V passenger car makes globally.

BMW

THINKCAR

Subaru

THINKCAR

LANDROVER

THINKCAR

Mercedes-Benz

THINKCAR

Nissan

THINKCAR

Porsche

THINKCAR

Seat

THINKCAR
THINKCAR

ThinkTool Lite offers OE-Level diagnostics such as full vehicle scan, read clear fault codes, live data stream, actuation tests, bi-directional functions, special functions, 28 different maintenance reset functions and more.

THINKCAR

28 Maintenance Reset

THINKCAR

Six Functional Modules

THINKTOOL Lite supports six functional modules, including Printer, Worklight, Video scope, Battery tester, Thermal Imager, Scope Box, providing technicians with more functionality choice.

THINKCAR

Scope Box

Check vehicle circuit related failure

Scope Box

THINKCAR

PRINTER

Support diagnostic report print service

PRINTER

THINKCAR

WORKLIGHT

Offer lighting assistant service

WORKLIGHT

THINKCAR

THERMAL IMAGER

Scan and capture vehicle temperature

THERMAL IMAGER

THINKCAR

VIDEO SCOPE (USB)

Allow technicians to check faults in narrow and dark space

VIDEO SCOPE (USB)

THINKCAR

BATTERY TESTER

Offers full battery check services

BATTERY TESTER

THINKCAR

T-Wand 200

Easily manage your TPMS service

T-Wand 200

UNIQUE DESIGN

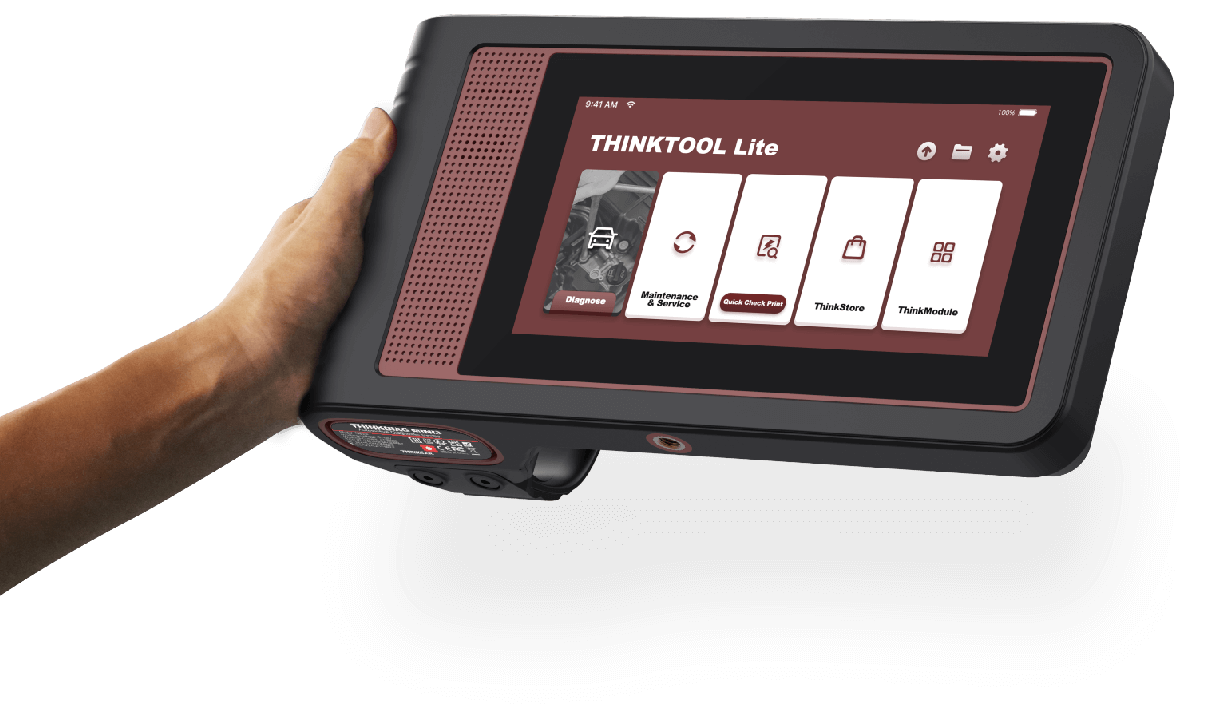

THINKTOOL Lite adopts the most unique design, the VCI is embedded in the tool, easy to carry.

THINKCAR
THINKCAR

VCI is embedded in the tool

Specifications

THINKCAR
THINKCAR
THINKCAR
THINKTOOL Lite offers two years software free update services.

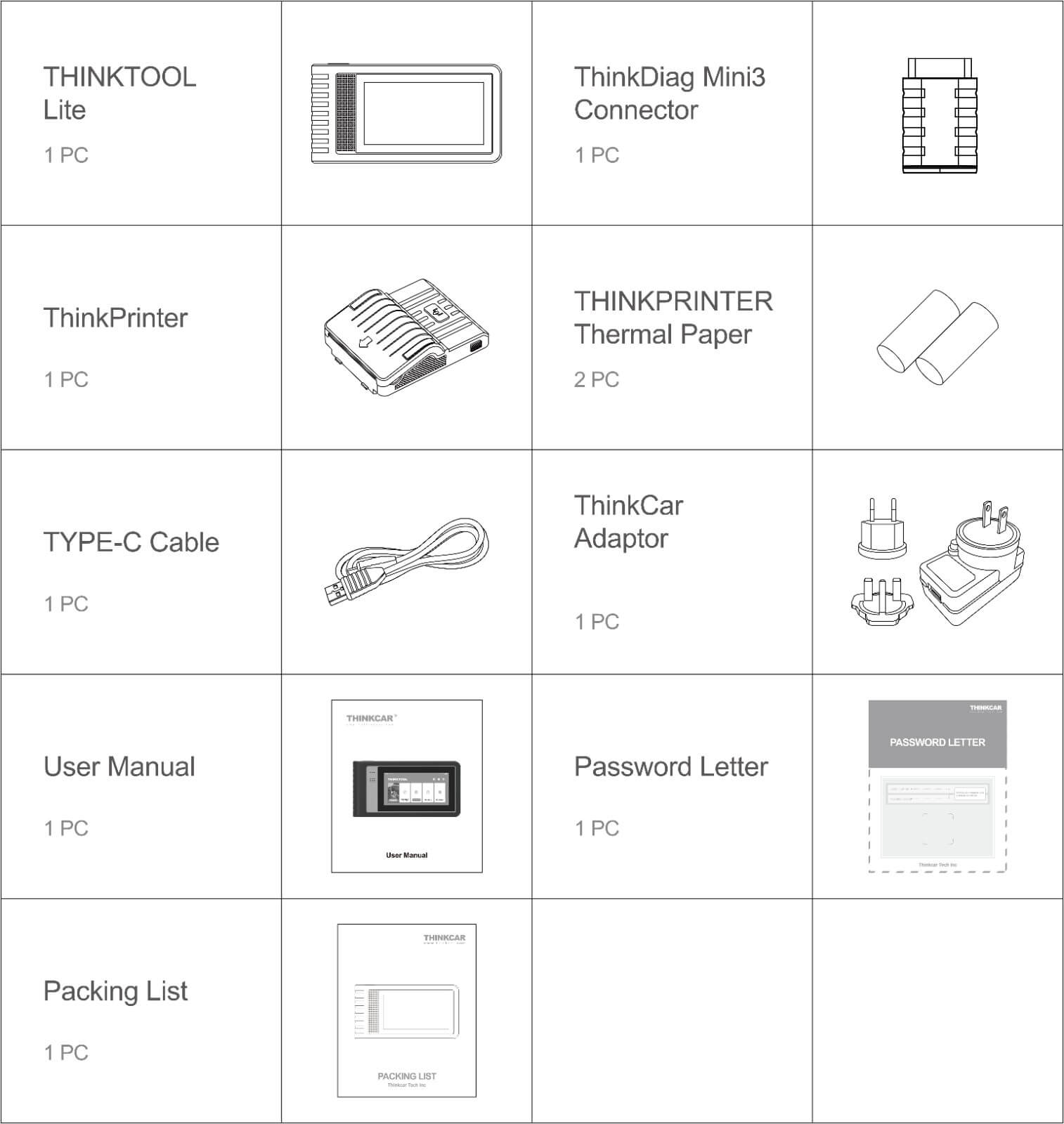

Accessories


Comparisons

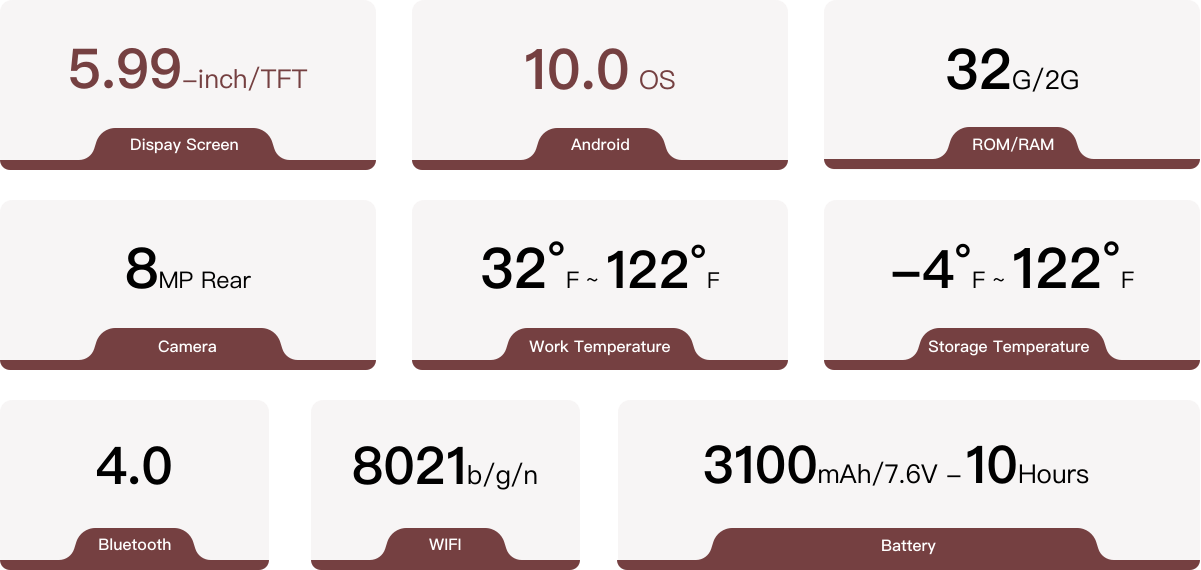

Specifications

Camera 8MP Rear
Battery 3100mAh/7.6V-10 Hours Continuous Operation
ROM/RAM 32G/2G
Display Screen 5.99-Inch/TFT(IPS)
Connection Mode BT4.0/WIFI(WLAN802.11b/g/n)
Work Temperature 32 ℉~122℉
Operationg System Android 10.0
Storage Temperature -4℉~144℉

FAQ

Insufficient contact of VCI with vehicle OBD port

Please replug the VCI.

Unfix the firmware.

Click “settings” and then “firmware repair” icon to upgrade the firmware.

Bad contact of the VCI

Please reinsert the VCI and try again.

Problem with Bluetooth pairing.

Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.

The diagnostic tablet is left unused for a long time and the battery runs out of power.

Boot by long-pressing the ON/OFF button after 2 hours charging.

Adapter failure.

Please confirm whether the adapter is properly connected to power supply, or the interface contact is in the right place.

No network on the diagnostic tablet.

Check if the diagnostic tablet is connected to good network.

Get prompted that the email address has been signed up.

1. Sign up a new account;2. Retrieve the password and sign in with the original account.

Fail to receive the verification code during sign-up.

1. Check if the email address is correct;

2. Resend a new verification code.

Username or password incorrect.

1. Check if the username or password is correct; 2. Reset your password.

Server failure.

Please try later due to server maintenance.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

The serial number and activation code are entered incorrectly

Please check and confirm whether the serial number and activation code are correctly entered (12 digits for serial number and 8 digits for activation code).

Activation code is invalid

Please contact THINKCAR service team or regional sales.

Prompt that the configuration is empty

Please contact THINKCAR service team or regional sale.

When the software is upgraded, it prompts that it is not activated.

The diagnostic VCI may not be activated during registration. Please use the serial number and activation code in the password envelope to activate the device. The operation steps are as follows: Click [Settings]-[VCI Activation], and enter the correct serial number and activation code in the interface, and click [Activate]. If you have any questions, please contact after-sales customer service.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

Insufficient storage space

Please uninstall irrelevant applications: select and delete uncommon software in “Software cleaning module” under “Settings” menu.

Server problem

Server under maintenance. Please try again later.

Poor contact of vehicle OBD internal circuit

Please check if OBD pins are all in good conditions.

Vehicle battery heavily loss of electricity

Please recharge of replace the battery.

VCI damage

Please provide proof video to THINKCAR service team for processing.

How to save power?

1)Please sleep the screen,if the tablet isn’t been used. 2)Reduce screen standby time by setting. 3)Reduce the screen brightness by setting.

Where can I purchase a THINKCAR device?

Please contact your local dealers listed in www.thinkcar.com to buy THINKCAR tools.

Can I dis-active my diagnostic tools?

Cancellation of registration is not allowed.If there are any special circumstances, the dealer will submit the SN and application reason to the company to apply, and the dealer will assume that the customer complaint caused by the cancellation of the registration will be assumed by the dealer.

Can the account password be changed?

Modification is not allowed, customers are advised to modify by themselves by retrieving the password
