THINKCAR Professional

Tire Equipment

TFJ Dual Pump Jack

THINKCAR TFJ Dual Pump Jack Series

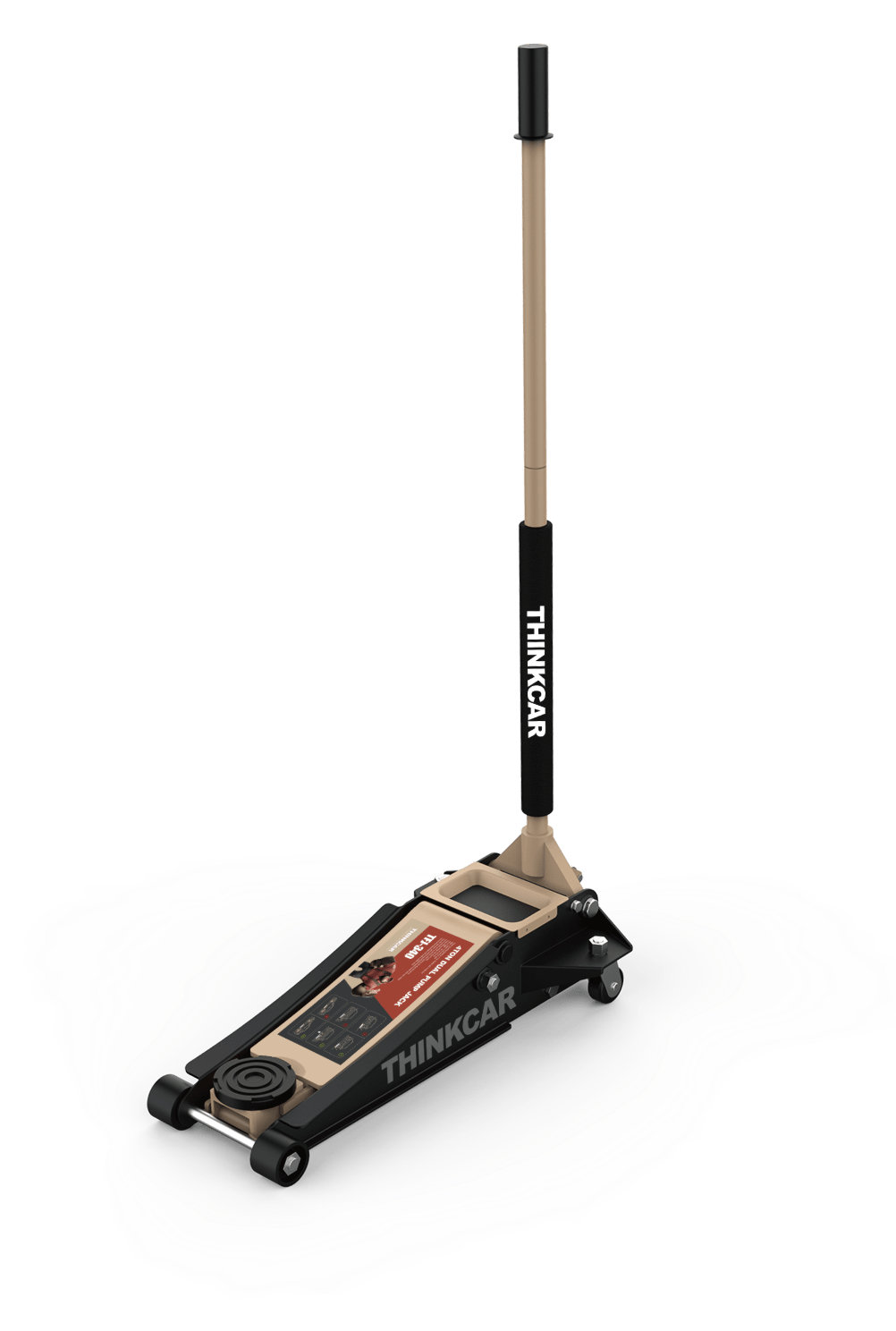

3TON DUAL PUMP JACK

Function

· Dual pump design makes the lifting faster

· Low- position design with 85mm low entry minimum jack pad height

· Magnetic pad tool tray, convenient and fast

· Thickened front wheels and 360°universal wheel, reliable and easy operation.

· Side panel folding design to improve the loading capability

· The operating lever is equipped with foam for better user experience

Specifications

Item No. TFJ 330

Capacity 3Ton

Min.H(A) 85 mm

Lifting.H.(B) 415 mm

Max.H.(C) 500 mm

Size(DxExF) 702*343*158 mm

CTN Size 765*420*215 mm

N.W
34.5Kgs

G.W
36 Kgs

Quantity20’ container
420Pcs

Quantity40’ container
690Pcs

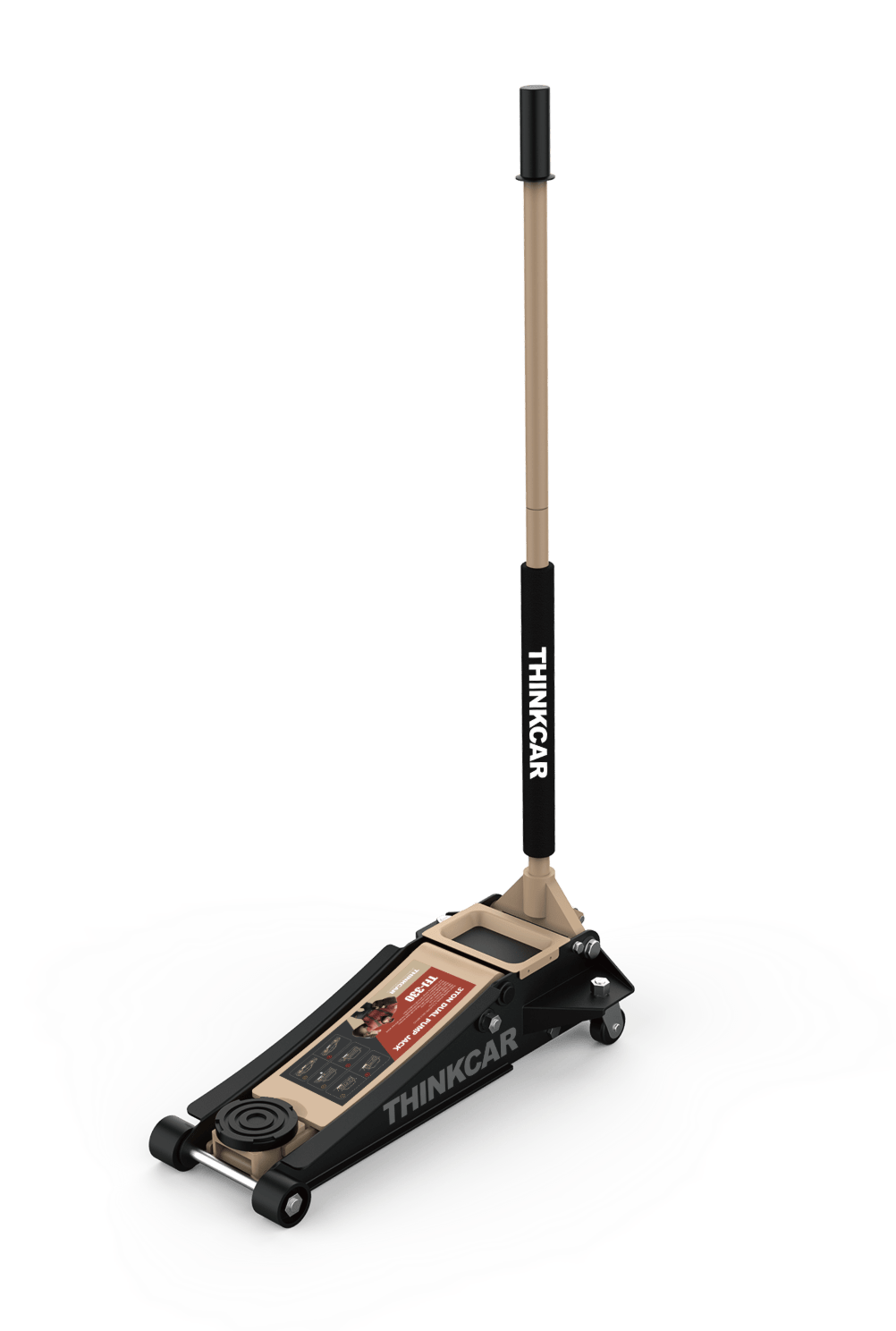

4TON DUAL PUMP JACK

Function

· Dual pump design makes the lifting faster

· Low- position design with 100mm low entry minimum jack pad height

· Magnetic pad tool tray, convenient and fast

· Thickened front wheels and 360°universal wheel, reliable and easy operation.

· Side panel folding design to improve the loading capability

· The operating lever is equipped with foam for better user experience

Specifications

Item No. TFJ 340

Capacity 4Ton

Min.H(A) 100 mm

Lifting.H.(B) 433 mm

Max.H.(C) 533 mm

Size(DxExF) 751*359*162 mm

CTN Size 817*451*231 mm

N.W
44Kgs

G.W
47Kgs

Quantity20’ container
350Pcs

Quantity40’ container
535Pcs

Safety Notice

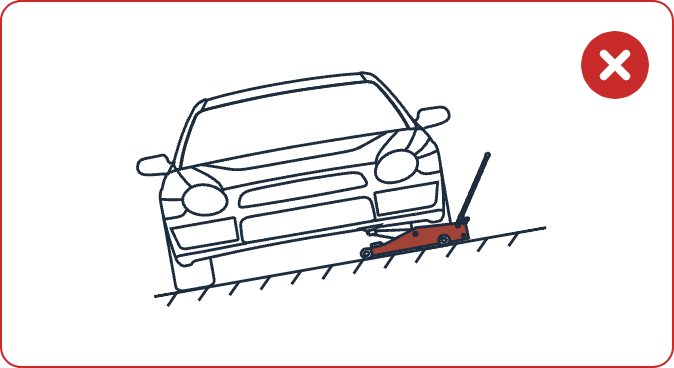

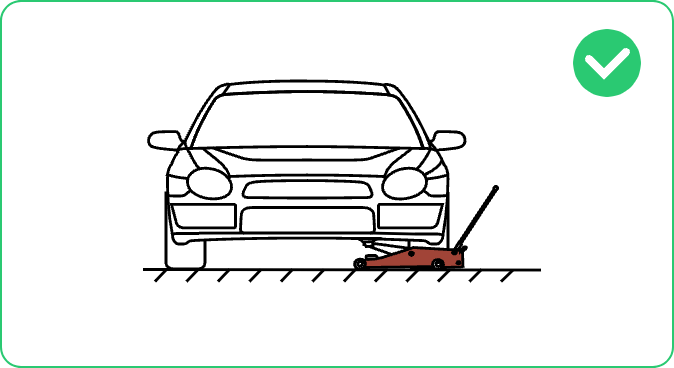

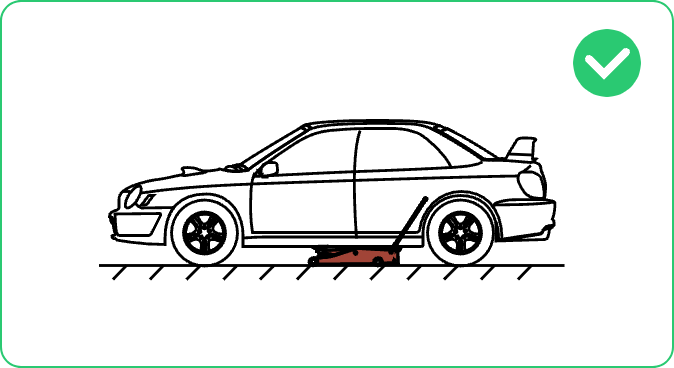

Please keep the vehicle balanced

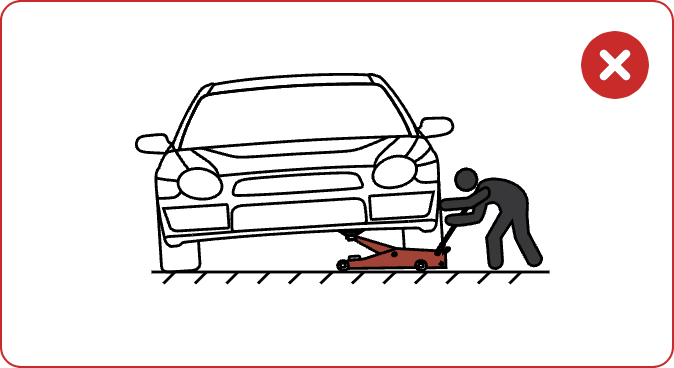

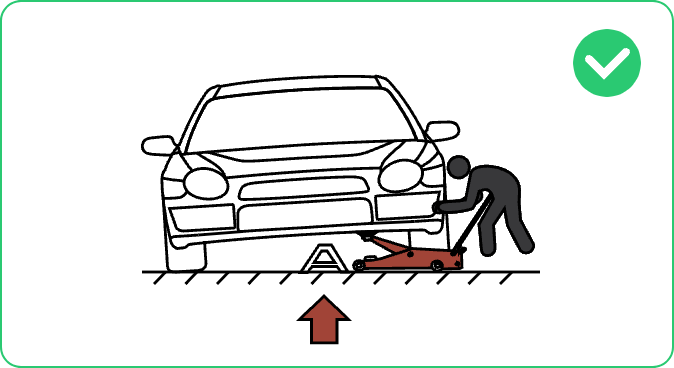

Please put the Jack Stand when using the Pump Jack

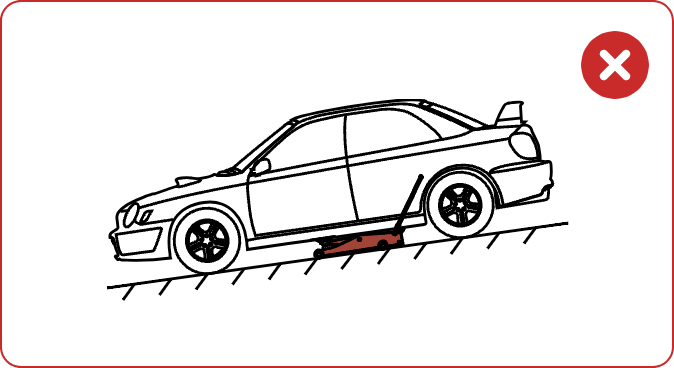

Please do not use the Pump Jack in slop place
