Carry out More Expansion Work with THINKCAR Air Compressor !
Auto Repair
Car paint
Tire Inflation
THINKCAR Oil-free Silent Air Compressor is a versatile appliance with power variations of 980w-1680w, it offers a new alternative to traditional direct drive air compressor. THINKCAR air compressor has different models selection, TAC 635, TAC 644, TAC 647, which are widely used in garages, workshops for powering air tools, tire inflation, car paint, auto repair, spray painting, etc.
TAC647-220V
TAC647-380V
TAC-644
TAC635-220V
TAC635-380V
Versatile appliance with power variations of
980W,1680W.
Portable, easy to transport and set up, saving time, improve working efficiency.
Equipped with oil-free pump, the Silent Air Compressor eliminates the need for constant maintenance and oil changes, providing a cost-effective solution for users.
Fast and efficient inflation.
The intake pipe is made of 180℃ high-temperature resistant copper enameled wire, with double protection to reduce damage and corrosion.

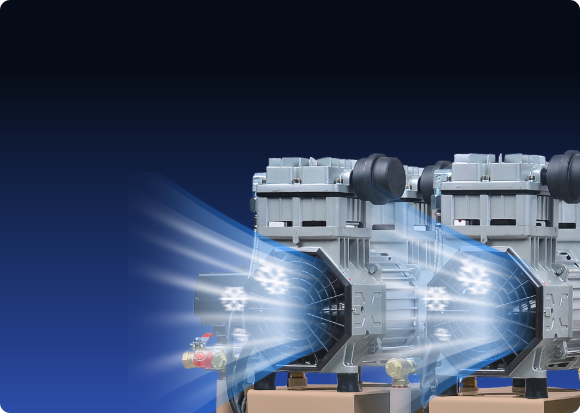

Fast heating dissipation to prevent overheating.
Long-life Span. The consistent working hours is up to 3500, which is double compare with other models in the market.
3500
Hour
High quality raw material.
new thickened aluminum parts.

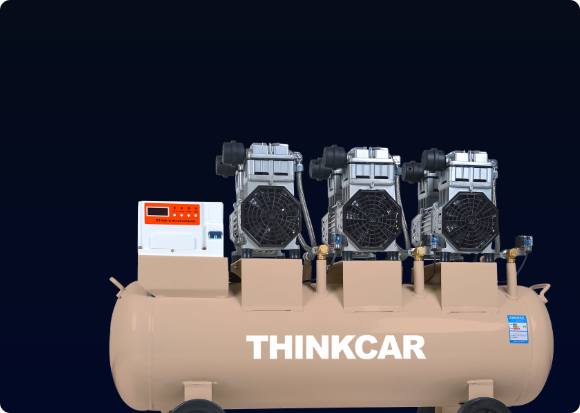

High capacity 90-300L gas tank, which is made of high-quality steel plate with 3.2MM thickness.
Model | TAC-633 | TAC-644 | TAC-635 | TAC-647 | TAC-658 |
---|---|---|---|---|---|
Voltage/ Frequency | 220V/50HZ | 220V/50HZ | 220V/50HZ 380V/50HZ | 220V/50HZ 380V/50HZ | 380V/50HZ |
Speed | 1400r/min | 1400r/min | 1400r/min | 1400r/min | 1400r/min |
Gas tank capacity | 90L | 120L | 120L | 220L | 300L |
Input power | 980Wx3 | 980Wx4 | 1680Wx3 | 1680Wx4 | 1680Wx5 |
Exhaust volume | 580L/min | 720L/min | 780L/min | 1030L/min | 1280L/min |
Working pressure | 0.8MPA | 0.8MPA | 0.8MPA (1MPA Optional) | 0.8MPA (1MPA Optional) | 0.8MPA (1MPA Optional) |
External dimensions | 100x38x68 cm | 120x38x79 cm | 120x39x85cm | 150x40x94 cm | 155x53x100 cm |
