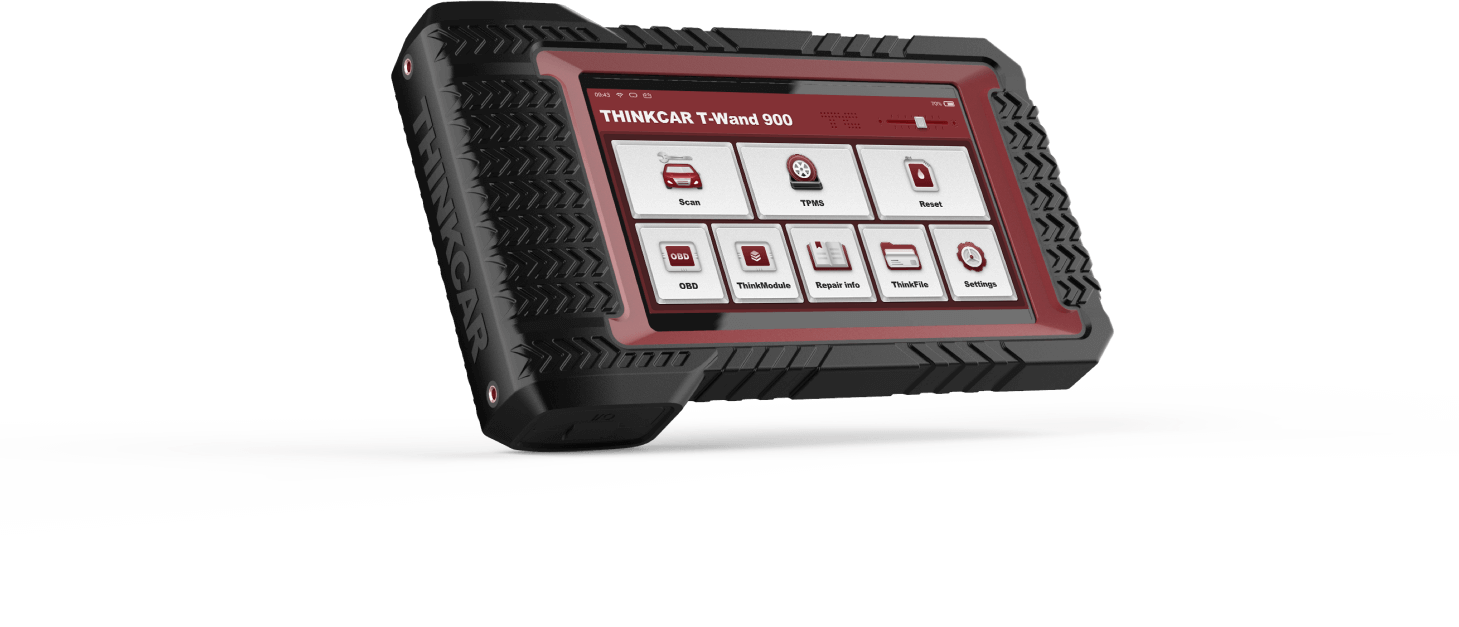

THINKCAR T-Wand 900

Full Vehicle Diagnostic With Intelligent TPMS Sensor Activation, Programming and Relearn Function!

Build-in TPMS

Full System Scan

Lifetime Free Update

28 Maintenance

Extensive Module Support

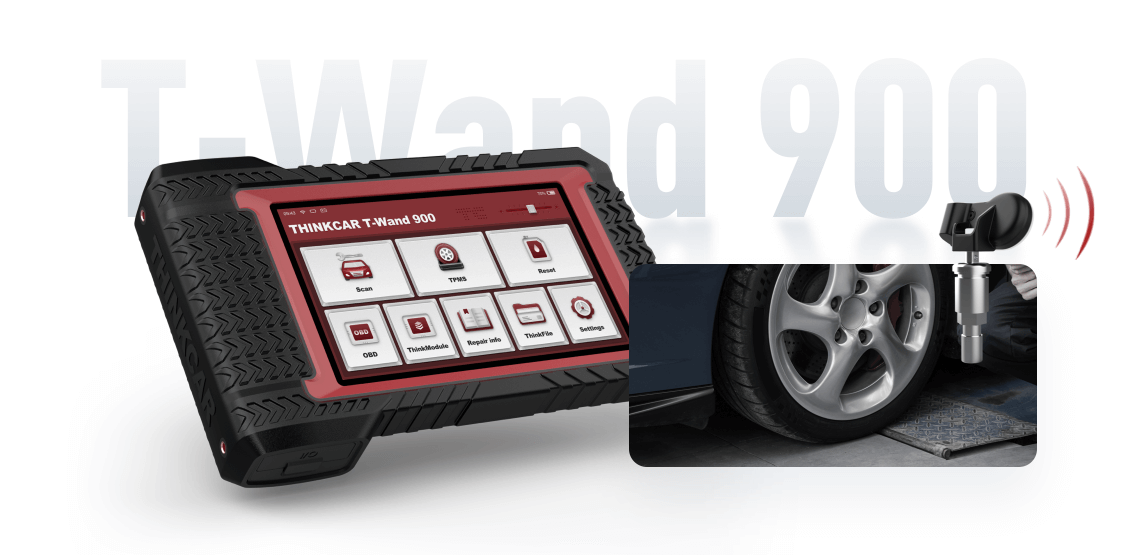

Build-in TPMS with Full TPMS Service

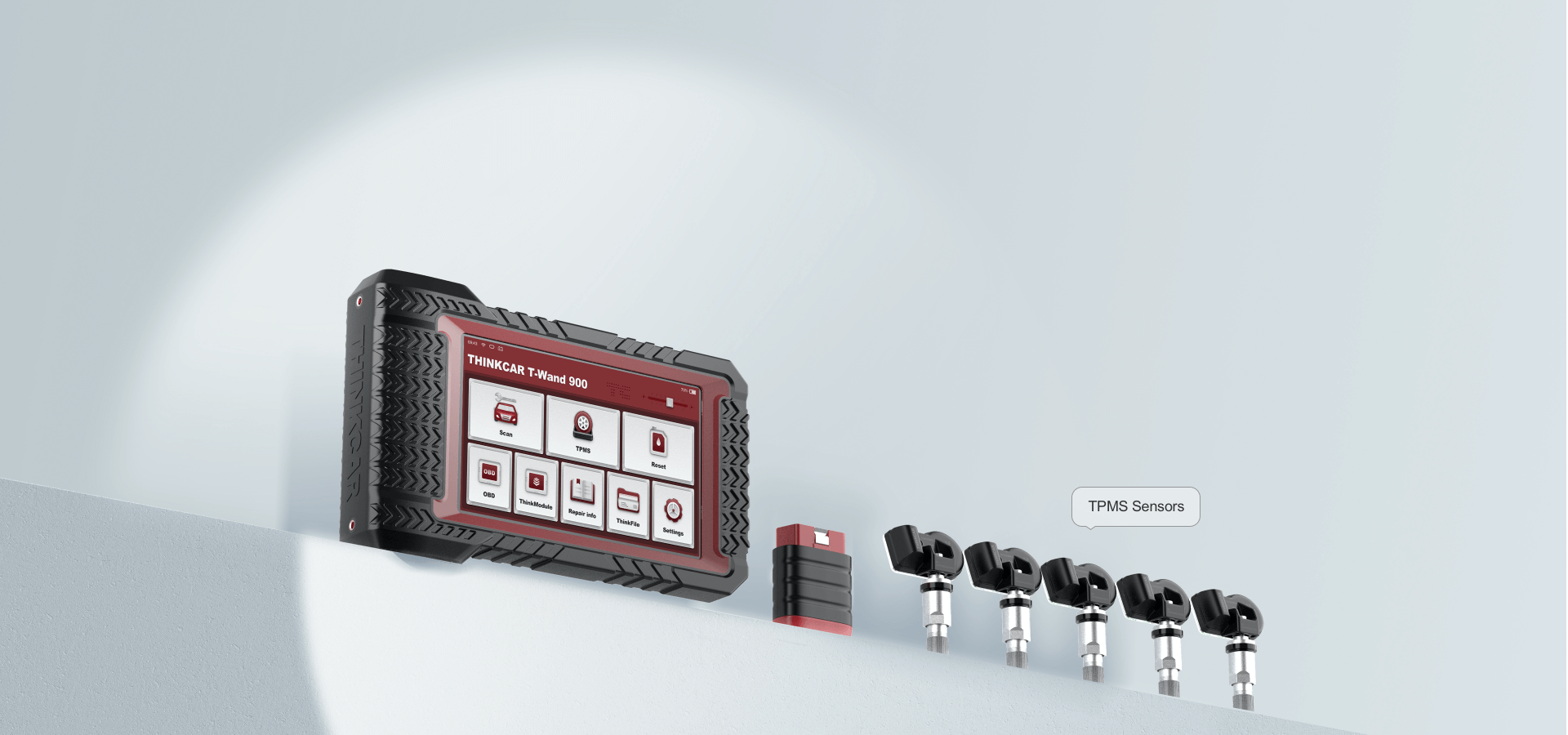

THINKCAR T-Wand 900 is an intelligent TPMS service tool with build-in TPMS module,integrated full TPMS sensor activation, programming and relearn function. The equipped 5 TPMS S1 sensors can replace OE 315 MHz and 433 MHz frequency sensors.

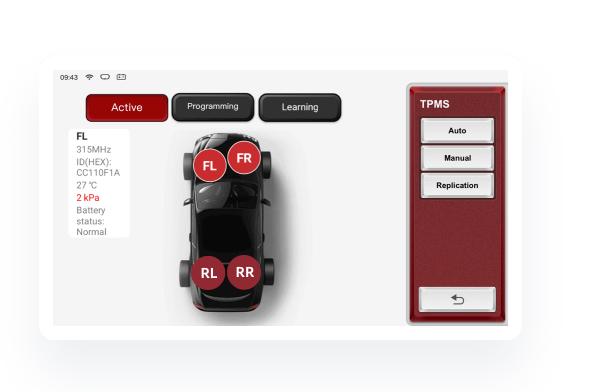

Sensor Activation

To read sensor ID, tire pressure, frequency, temperature and sensor battery.

Sensor Progremming

T-Wand supports three different programming methord, copy, automatic create ID, Manual Create.

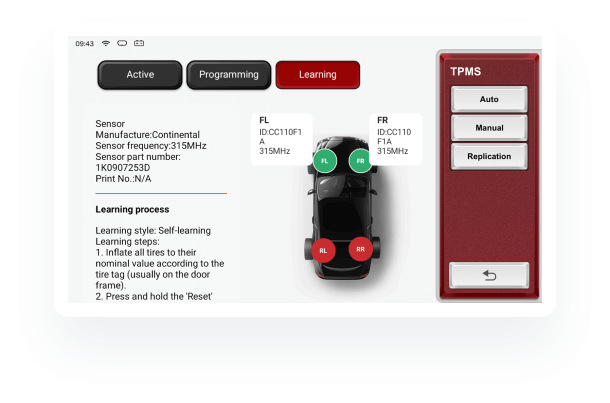

Sensor – Relearn Function

To write the newly programmed sensor IDs into the ECU for sensor recognition

OE-Level Full Vehicle Diagnostic Full Software Lifetime Free Update

THINKCAR T-Wand 900 is also a full system diagnostic tool support 99% vehicle to read and clear fault codes, to read, save or compare live data stream, to do 28 different kinds of maintenance and resets. All manufacturer software and maintenance software lifetime free update.

Integrated 28 Commonly Used Maintenance Special Function

RESET ADBLUE RESET BRAKE RESET INJEC RESET STOP/START
RESET AFS RESET COOLANT RESET LANGUAGE RESET SUN
RESET AIRBAG RESET DPF RESET NOXSENSOR RESET SUS
RESET AIRFUEL RESET EGR RESET ODO RESET TPMS
RESET BLEED RESET ETS RESET OIL RESET TRANSPORT
RESET BMS RESET GEAR RESET SAS RESET TYRE
RESET BOX RESET IMMO RESET SEAT RESET WINDOW

Extended Module Support

BATTERY TESTER

Offers full battery check services

Innovative Battery Testing, Leave Traditional Way in the Past!



  Integrated with ThinkTool HD screen for clearer display


  High-precision data monitoring, with more accurate results


  Support detecting battery voltage, resistance, service life, current and etc

THINKTOOL Scope Box

Check vehicle circuit related failure

Useful, Professional, with Easy Operation



  100M bandwidth,4 channels


  Up to 1GSa/s of sampling rate,with 50Mpts record length

THINKTOOL Printer

Support diagnostic report print service

Quick Print Diagnostic Reports Anytime and Anywhere!



  3.1-inch (80mm) paper width, 1.2-inch/s 30mm/s) fast printing


  Intelligent notification for refilling paper


  Ultra-thick thermal coating, with contents retained for 10 years


  Work with Module Dock as a wireless printer

THINKTOOL Video Scope

Allow technicians to check faults in narrow and dark space

See Deeper & Clearer, with More Details in Narrow Spaces!



  1280*720 high definition


  59-inch (150cm) super long hardwired coil


  6 bright LED auxiliary lights


  Water, oil and corrosion resistant, IP67 rated with alkali resistance

THINKTOOL Work Light

Offer lighting assistant service

Ultra-High Brightness LED Worklight!



  3-level brightness adjustment


  144 high-brightness LED lights


  COB light source, 25000K white-light, long range illumination


  Long life expectancy, up to 10,000 hours


  Work with Module Dock

THINKTOOL Thermal Imager

Scan and capture vehicle temperature

Identify Faults with Massive Data Comparison!



  320*240 ultra-high pixels, easy to view details


  32.126℉ (0.07℃) thermal sensitivity


  Massive automotive heat maps for fault comparison

Remarks: Please buy the modules in ThinkStore or local authorized
distributors.

Specifications

Operating System
Android 10

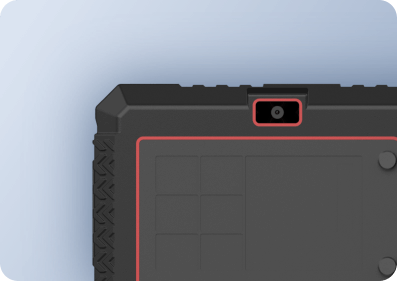

Camera
13MP Rear

Screen Size
7-inch

ROM/RAM
64G/2G

Battery
6000mAh/3.8V

Accessories

No Data

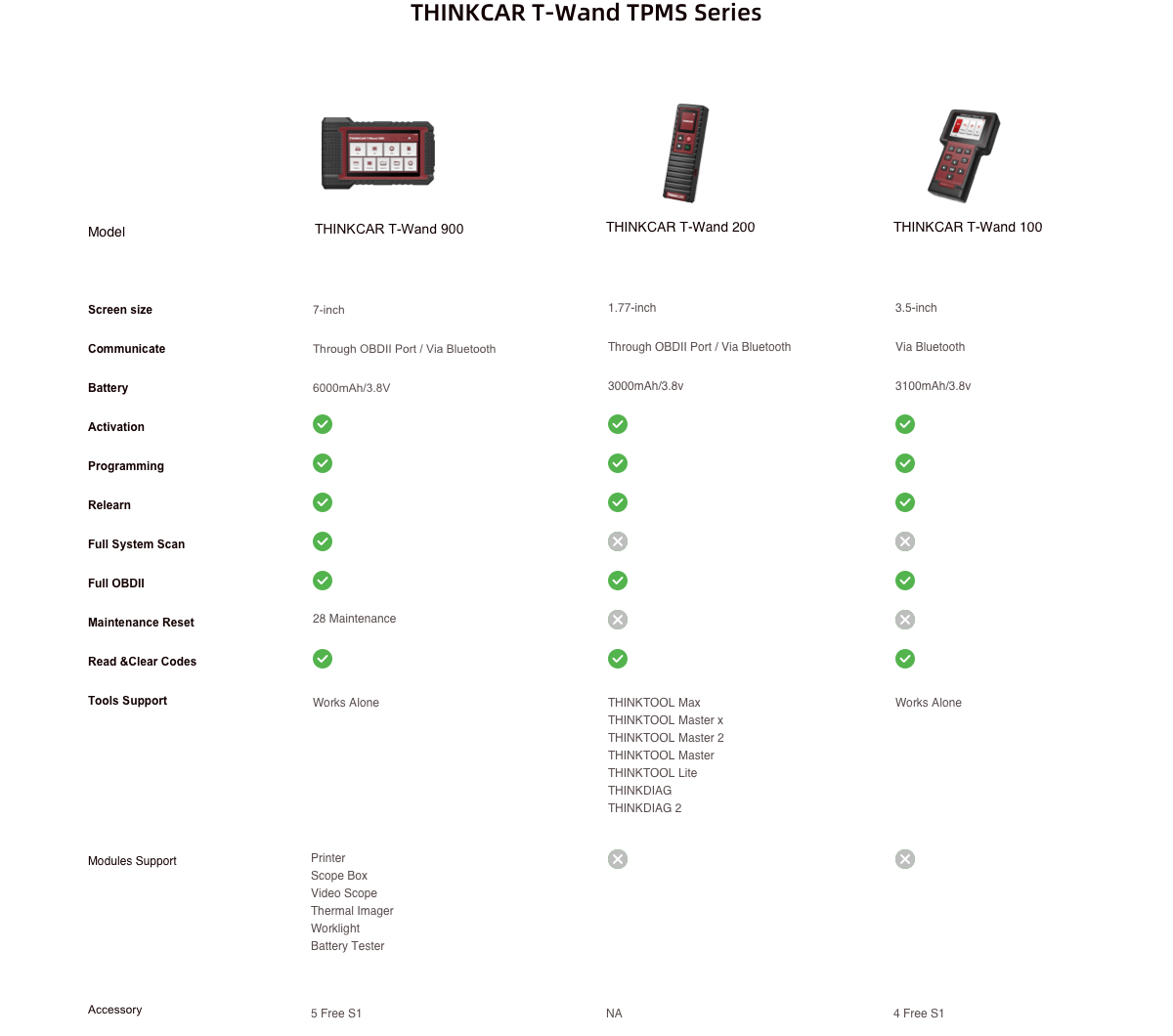

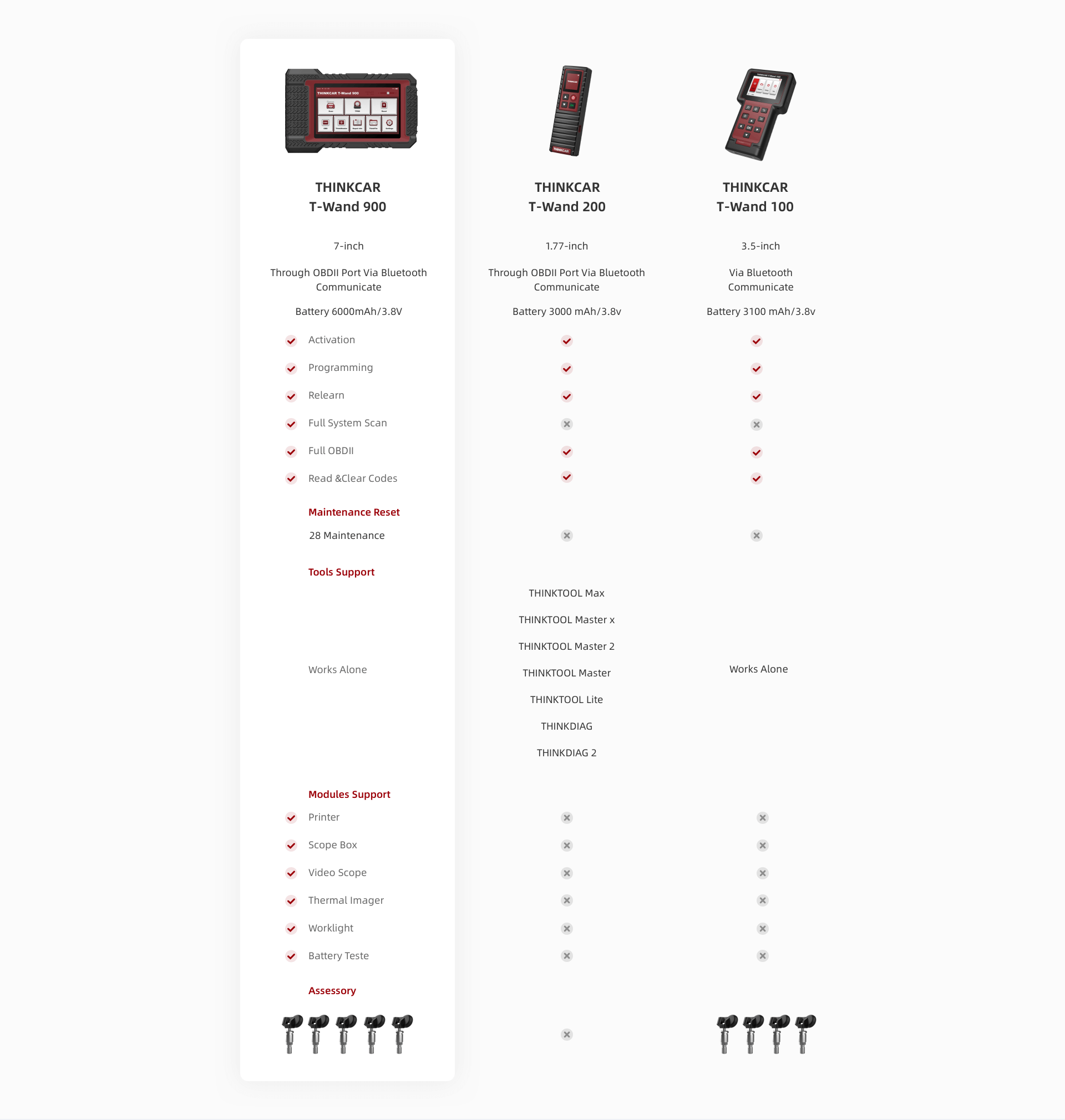

Comparisons



Specifications

No Data

FAQ

Insufficient contact of VCI with vehicle OBD port

Please replug the VCI.

Unfix the firmware.

Click “settings” and then “firmware repair” icon to upgrade the firmware.

Bad contact of the VCI

Please reinsert the VCI and try again.

Problem with Bluetooth pairing.

Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.

The diagnostic tablet is left unused for a long time and the battery runs out of power.

Boot by long-pressing the ON/OFF button after 2 hours charging.

Adapter failure.

Please confirm whether the adapter is properly connected to power supply, or the interface contact is in the right place.

No network on the diagnostic tablet.

Check if the diagnostic tablet is connected to good network.

Get prompted that the email address has been signed up.

1. Sign up a new account;2. Retrieve the password and sign in with the original account.

Fail to receive the verification code during sign-up.

1. Check if the email address is correct;

2. Resend a new verification code.

Username or password incorrect.

1. Check if the username or password is correct; 2. Reset your password.

Server failure.

Please try later due to server maintenance.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

The serial number and activation code are entered incorrectly

Please check and confirm whether the serial number and activation code are correctly entered (12 digits for serial number and 8 digits for activation code).

Activation code is invalid

Please contact THINKCAR service team or regional sales.

Prompt that the configuration is empty

Please contact THINKCAR service team or regional sale.

When the software is upgraded, it prompts that it is not activated.

The diagnostic VCI may not be activated during registration. Please use the serial number and activation code in the password envelope to activate the device. The operation steps are as follows: Click [Settings]-[VCI Activation], and enter the correct serial number and activation code in the interface, and click [Activate]. If you have any questions, please contact after-sales customer service.

The device is not connected to Internet

Please confirm whether WiFi network is working normally or network connection is successful.

Insufficient storage space

Please uninstall irrelevant applications: select and delete uncommon software in “Software cleaning module” under “Settings” menu.

Server problem

Server under maintenance. Please try again later.

Poor contact of vehicle OBD internal circuit

Please check if OBD pins are all in good conditions.

Vehicle battery heavily loss of electricity

Please recharge of replace the battery.

VCI damage

Please provide proof video to THINKCAR service team for processing.

How to save power?

1)Please sleep the screen,if the tablet isn’t been used. 2)Reduce screen standby time by setting. 3)Reduce the screen brightness by setting.

Where can I purchase a THINKCAR device?

Please contact your local dealers listed in www.thinkcar.com to buy THINKCAR tools.

Can I dis-active my diagnostic tools?

Cancellation of registration is not allowed.If there are any special circumstances, the dealer will submit the SN and application reason to the company to apply, and the dealer will assume that the customer complaint caused by the cancellation of the registration will be assumed by the dealer.

Can the account password be changed?

Modification is not allowed, customers are advised to modify by themselves by retrieving the password
