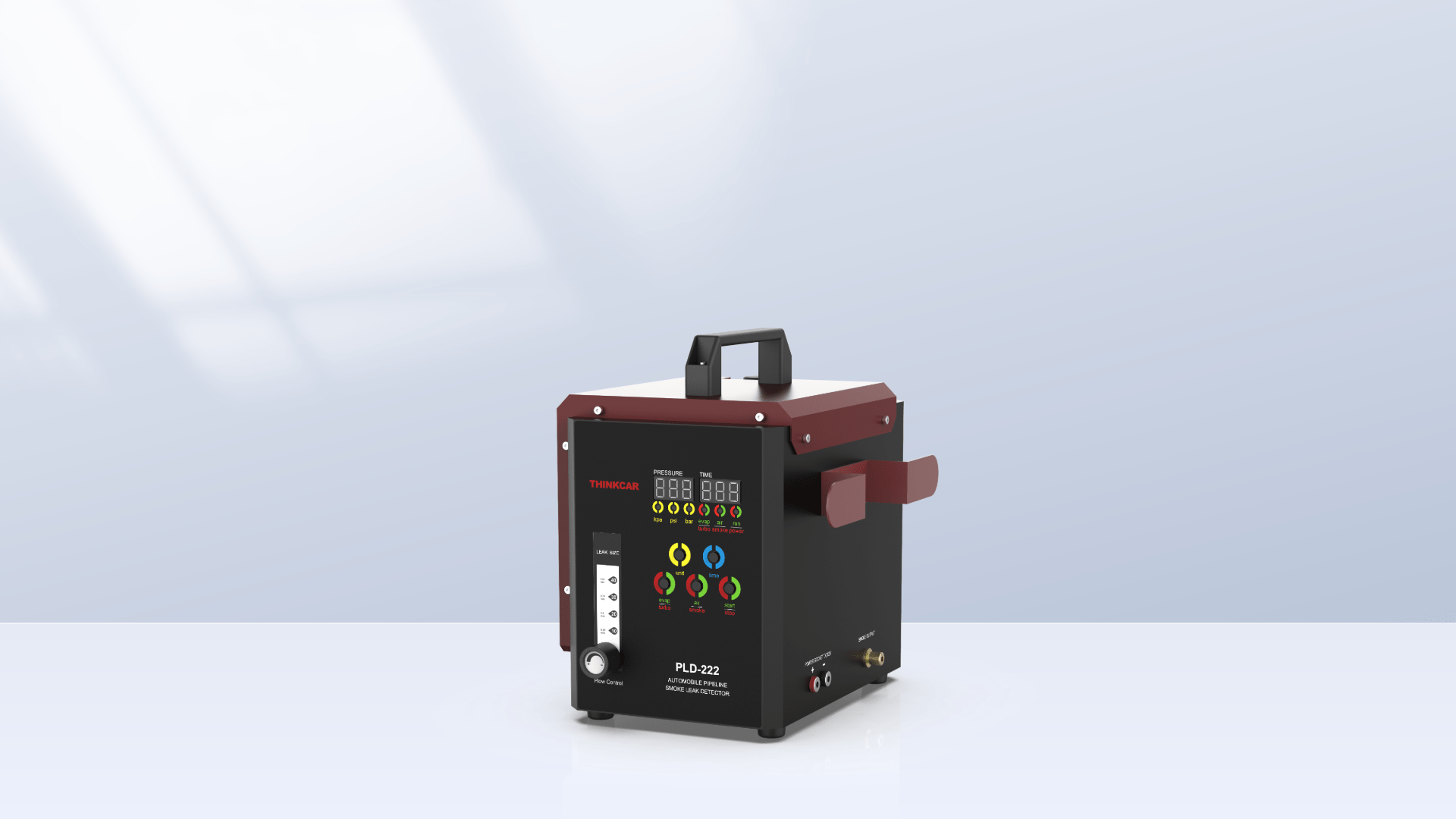

THINKCAR PLD 222
Automotive Leak Tester
One Key Switch Between TURBO and EVAP Mode!
Support Turbo & EVAP Mode
Build-in Air Pump
Large Smoke Flow ( 12L/Min)
Air/Smoke Dual Test Mode
Introduce

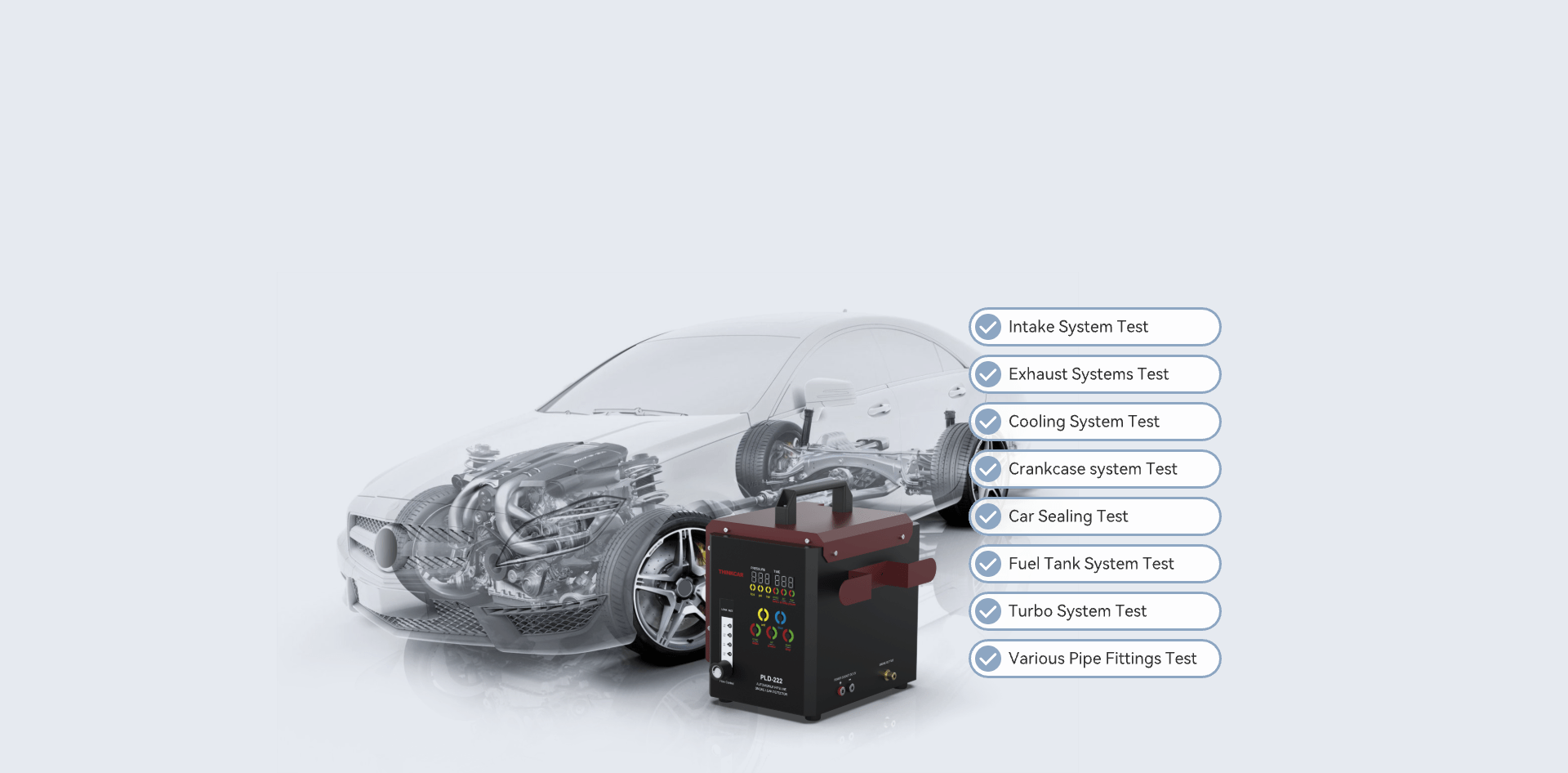

THINKCAR PLD 222 is a new generation of automotive leak tester with Turbo and EVAP model selection. It’s widely use in automotive repairs to position cars motorcycles leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Cooling System Test, Crankcase system test,Car Sealing Test, Fuel Tank System Test, Turbo System Test,Various Pipe Fittings Test.
Wide Applications
The PLD 222 is universally applicable to all types of vehicles, supports comprehensive detection across all systems in your vehicles, including but not limited to EVAP, EGR, Vacuum, Engine, Intake, Exhaust, Fuel Tank System and various pipe fittings.
Brand new Design

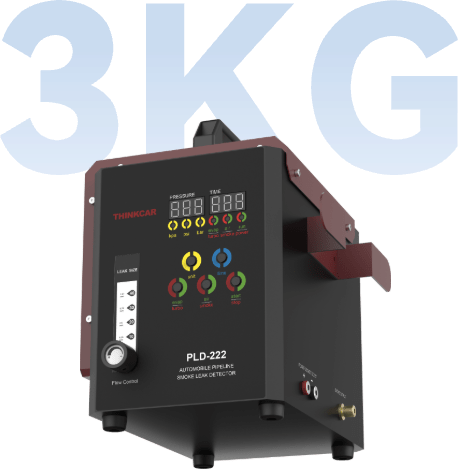

Compact patented design. Small and portable, the overall weight is only 3KG.

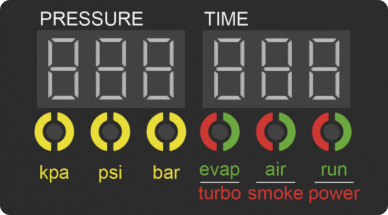

LED screen display

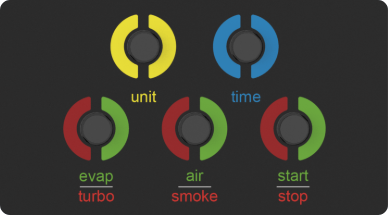

Function buttons
Easy to use

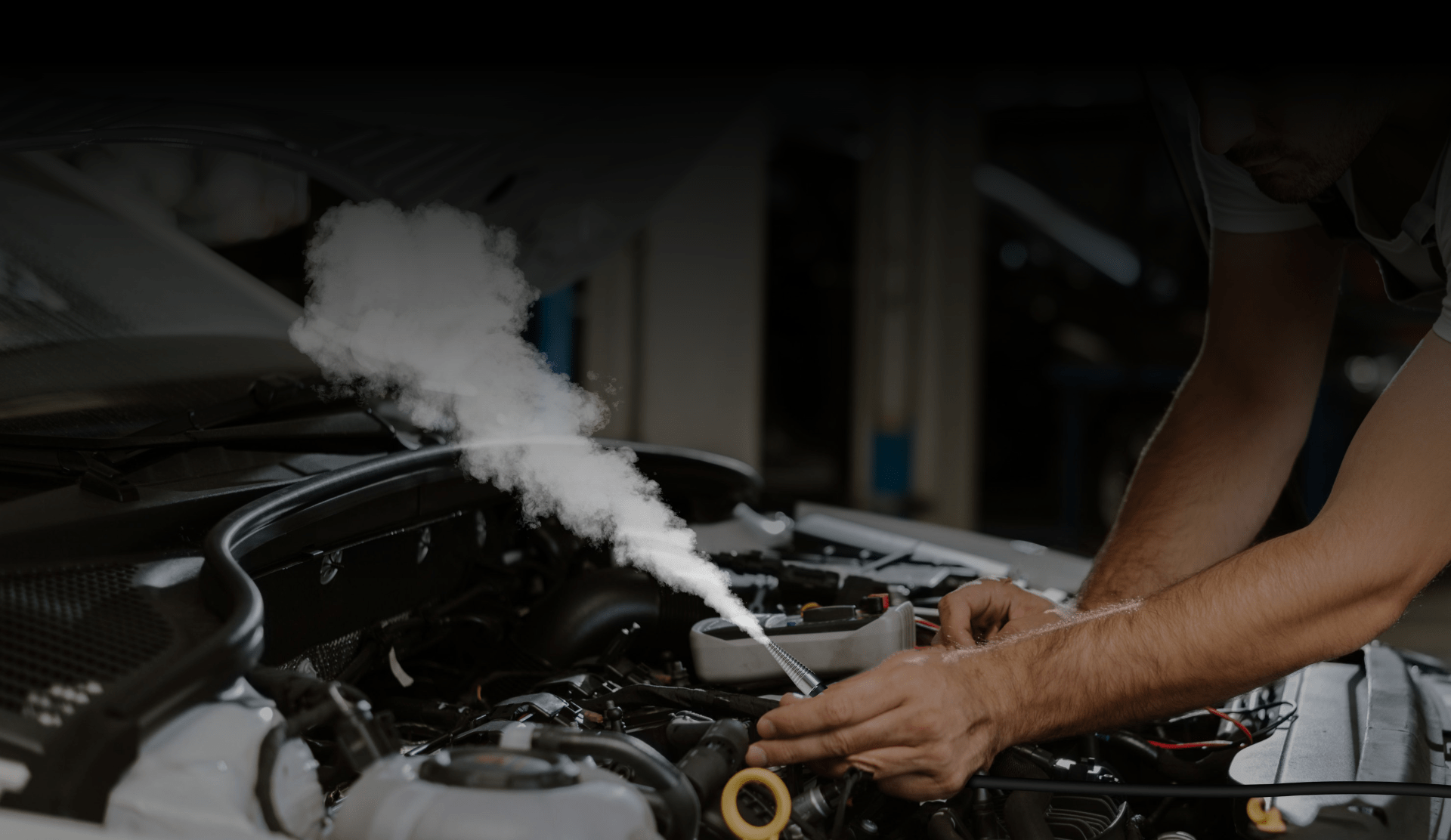

Features a faster and more powerful built-in air pump motor, no need to reply on external compressor. With a pressure range of 1.2 bar to 3.5kpa, and a smoke output of 12L/Min, the PLD 222 is easy to conduct smoke tests anywhere.

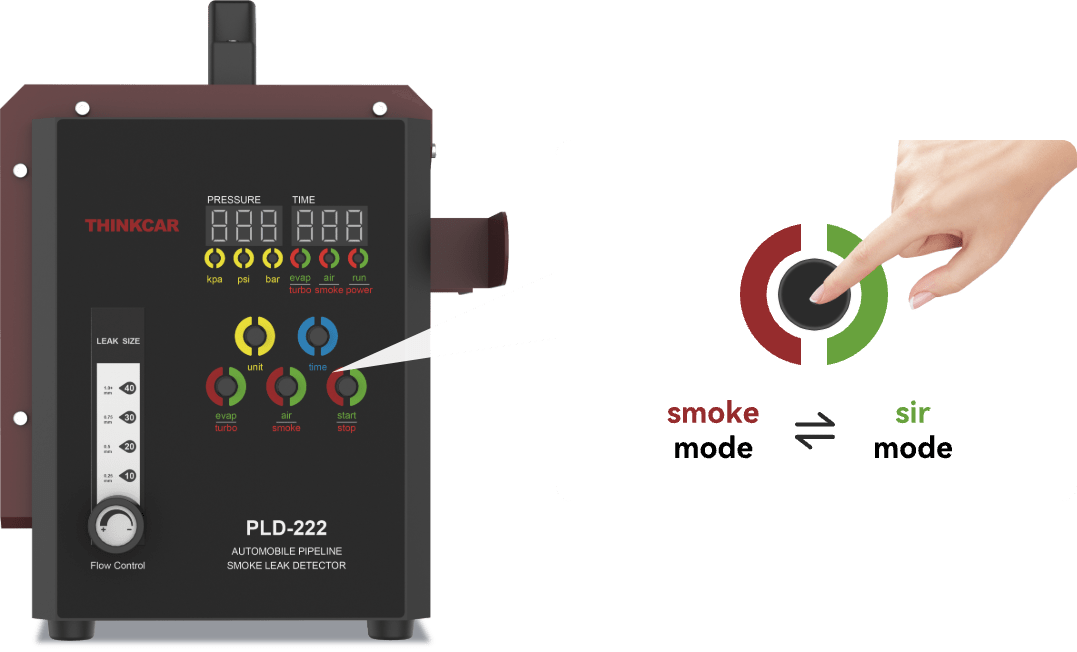

Air Mode & Smoke Mode
Provides two test mode. The air intake flow and smoke output are adjustable.

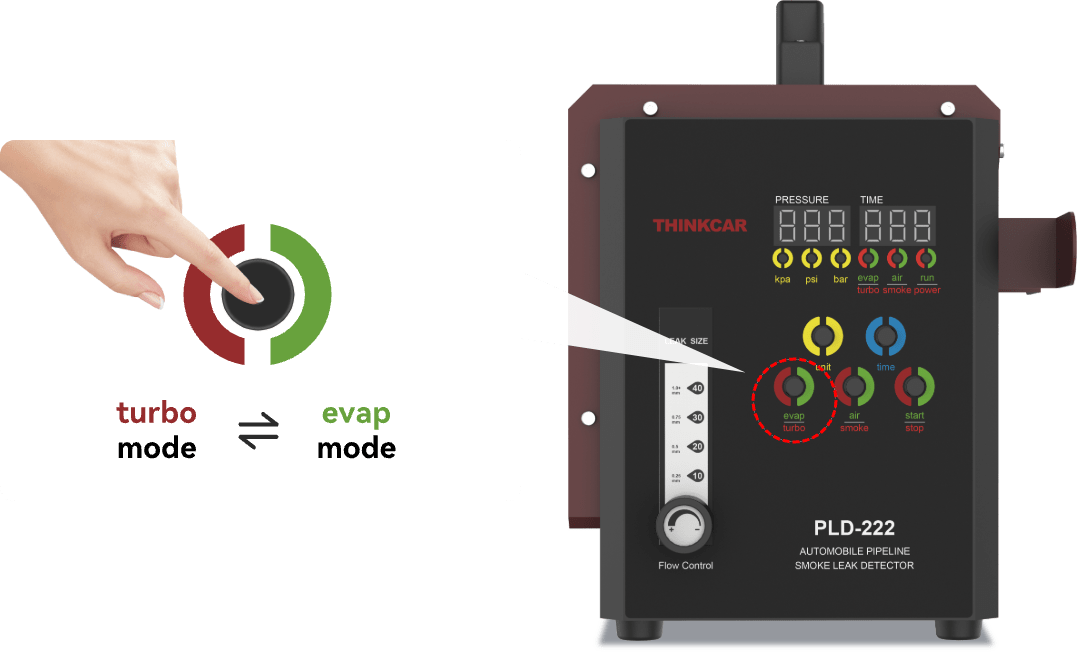

One Key to Switch TURBO and EVAP Mode!
Support both turbo and EVAP mode. Easy to switch and use!
Specifications
| Model |
PLD-222(TURBO+EVAP) |
PLD-212(EVAP) |
PLD-212(TURBO) |
|---|---|---|---|
| Voltage | DC12V | DC12V | DC12V |
| Current | 6A | 6A | 6A |
| Pipeline Length | 2.5m | 2m | 2m |
| Power Supply Cable | 1.5m | 2m | 2m |
| Main Unit Flow Amount | 0-12L/Min | 0-12L/Min | 0-12L/Min |
| Air Pump Flow Amount | 8-15L/Min | 8-15L/Min | 8-15L/Min |
| Oil Volume | 30ml | 45ml | 45ml |
| Max. Output Pressure |
1.2bar-TURBO Mode 3.5kpa-EVAP Mode |
4KPa | 16PSI |
| Weight | 3KG | 3KG | 3KG |
| Warranty | 1-Year | 1-Year | 1-Year |
Packing List
Main unit
1pcs
Power Supply Cable
1pcs
Smoke Hose
1pcs
Standard Cone Adapter
1pcs
EVAP Special Connector
1pcs
Funnel
1pcs
Smoke Test Oil(Optional)
1pcs
Airbag
1pcs
Hard Rubber Hose Plug
8pcs
Funnel
1pcs
Accessories
No Data
Comparisons
Specifications
No Data
FAQ
Insufficient contact of VCI with vehicle OBD port
Please replug the VCI.
Unfix the firmware.
Click “settings” and then “firmware repair” icon to upgrade the firmware.
Bad contact of the VCI
Please reinsert the VCI and try again.
Problem with Bluetooth pairing.
Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.
The diagnostic tablet is left unused for a long time and the battery runs out of power.
Boot by long-pressing the ON/OFF button after 2 hours charging.
Adapter failure.
Please confirm whether the adapter is properly connected to power supply, or the interface contact is in the right place.
No network on the diagnostic tablet.
Check if the diagnostic tablet is connected to good network.
Get prompted that the email address has been signed up.
1. Sign up a new account;2. Retrieve the password and sign in with the original account.
Fail to receive the verification code during sign-up.
1. Check if the email address is correct;
2. Resend a new verification code.
Username or password incorrect.
1. Check if the username or password is correct; 2. Reset your password.
Server failure.
Please try later due to server maintenance.
The device is not connected to Internet
Please confirm whether WiFi network is working normally or network connection is successful.
The serial number and activation code are entered incorrectly
Please check and confirm whether the serial number and activation code are correctly entered (12 digits for serial number and 8 digits for activation code).
Activation code is invalid
Please contact THINKCAR service team or regional sales.
Prompt that the configuration is empty
Please contact THINKCAR service team or regional sale.
When the software is upgraded, it prompts that it is not activated.
The diagnostic VCI may not be activated during registration. Please use the serial number and activation code in the password envelope to activate the device. The operation steps are as follows: Click [Settings]-[VCI Activation], and enter the correct serial number and activation code in the interface, and click [Activate]. If you have any questions, please contact after-sales customer service.
The device is not connected to Internet
Please confirm whether WiFi network is working normally or network connection is successful.
Insufficient storage space
Please uninstall irrelevant applications: select and delete uncommon software in “Software cleaning module” under “Settings” menu.
Server problem
Server under maintenance. Please try again later.
Poor contact of vehicle OBD internal circuit
Please check if OBD pins are all in good conditions.
Vehicle battery heavily loss of electricity
Please recharge of replace the battery.
VCI damage
Please provide proof video to THINKCAR service team for processing.
How to save power?
1）Please sleep the screen，if the tablet isn’t been used. 2)Reduce screen standby time by setting. 3)Reduce the screen brightness by setting.
Where can I purchase a THINKCAR device?
Please contact your local dealers listed in www.thinkcar.com to buy THINKCAR tools.
Can I dis-active my diagnostic tools?
Cancellation of registration is not allowed.If there are any special circumstances, the dealer will submit the SN and application reason to the company to apply, and the dealer will assume that the customer complaint caused by the cancellation of the registration will be assumed by the dealer.
Can the account password be changed?
Modification is not allowed, customers are advised to modify by themselves by retrieving the password
