THINKCAR PLD 212
Professional Automobile Pipeline Smoke Leak Detector
Remarks: PLD 212 has two different models available, EVAP Model and TURBO Model. Please choose occording to your needs.
Wide Range of Applications
THINKCAR PLD 212 is a professional automobile pipeline smoke leak detector,to detect the leakage of pipe systems on cars, motorcycles, light trucks,boats etc. It’s widely used in automotive repairs to detect vehicle air and oil leaks. It can also use together with thinkcar diagnostic tools to quickly diagnose vehicle engine leakage related fault.
The Evaporative Emission Control System (EVAP) is used to prevent gasoline vapors from escaping into the atmosphere from the fuel tank and fuel system at all times. The PLD 212 can be used to identify the specific location where the EVAP system leaks.
The Evaporative Emission Control System (EVAP) is used to prevent gasoline vapors from escaping into the atmosphere from the fuel tank and fuel system at all times. The PLD 212 can be used to identify
Build-in Air Pump
THINKCAR PLD 212 has Build-in Air Pump, one key operation design. Just connect the detector with the DC12V battery, press “START” to build smoke within 30s.
Overheat & Anti-frost Protection
THINKCAR PLD 212 has an intelligent protector, if it exceeds the working limit, such as over 120°C it will automatically turn off the power to secure the safety of both the operator and device.
Dual Flow Meters design
PLD 212 offers two test mode, air mode and smoke mode. Unique Design with 2 meters to observe the flow meter and the pressure gauge for leak status.
Easy to use

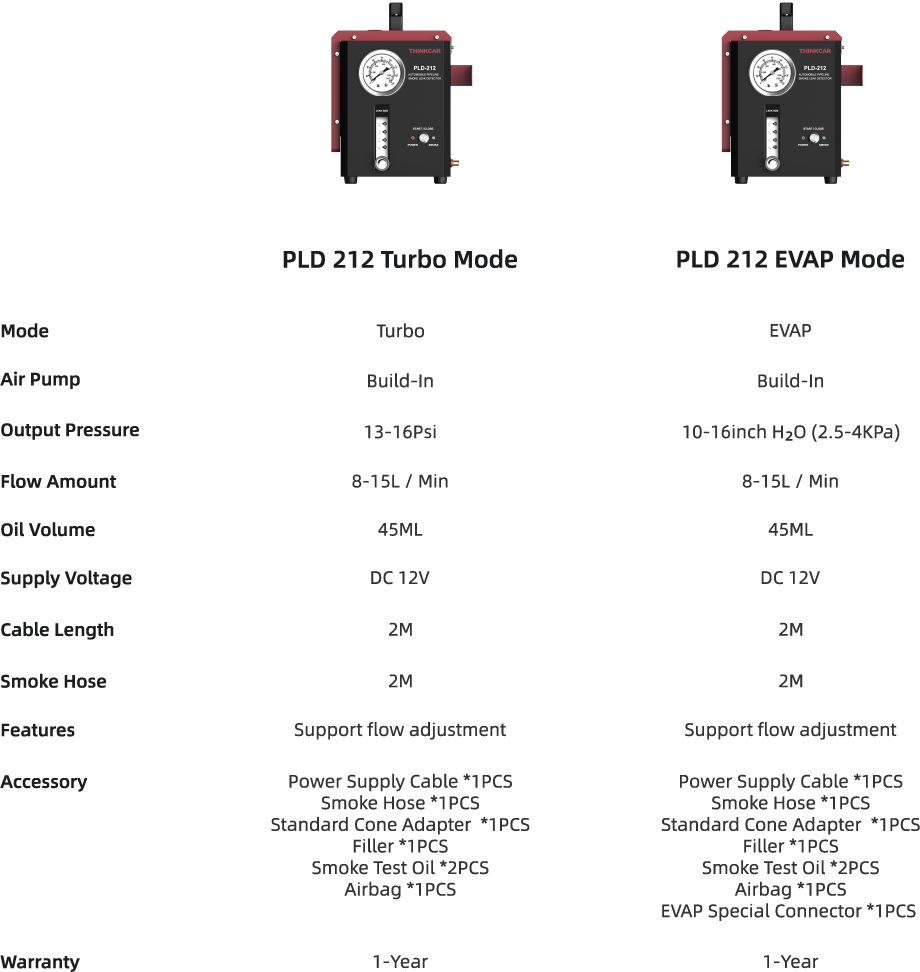

Comparison Chart
For Turbo & EVAP Model

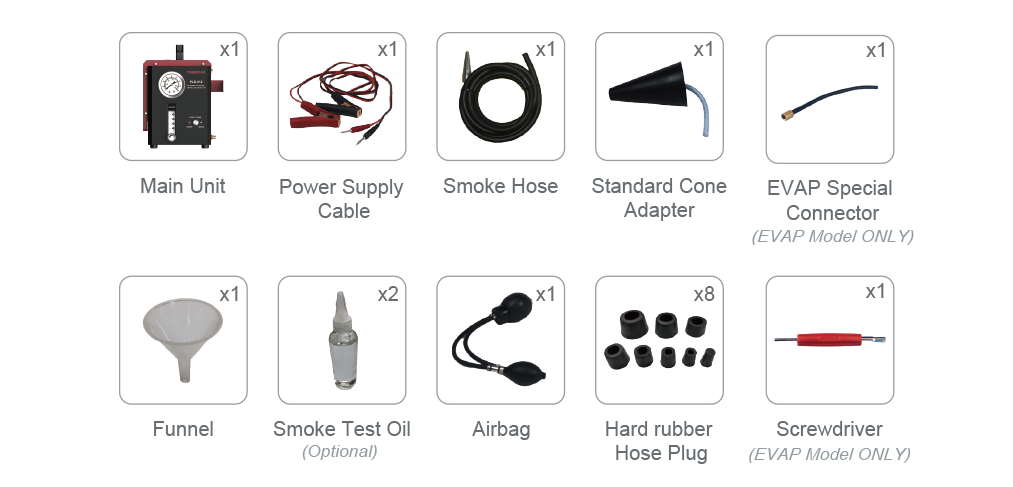

Packing List
Accessories
Comparisons
Specifications
| Output Pressure- Turbo Model | 13-16 Psi |
| Output Pressure- EVAP Model | 10-16 inch H2O (2.5-4KPa |
| Flow Amount | 8-15L/ Minute |
| Oil Volume | 45ML |
| Supply Voltage | DC 12V |
| Flow Adjustment | Support |
FAQ
Insufficient contact of VCI with vehicle OBD port
Please replug the VCI.
Unfix the firmware.
Click “settings” and then “firmware repair” icon to upgrade the firmware.
Bad contact of the VCI
Please reinsert the VCI and try again.
Problem with Bluetooth pairing.
Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.
The diagnostic tablet is left unused for a long time and the battery runs out of power.
Boot by long-pressing the ON/OFF button after 2 hours charging.
Adapter failure.
Please confirm whether the adapter is properly connected to power supply, or the interface contact is in the right place.
No network on the diagnostic tablet.
Check if the diagnostic tablet is connected to good network.
Get prompted that the email address has been signed up.
1. Sign up a new account;2. Retrieve the password and sign in with the original account.
Fail to receive the verification code during sign-up.
1. Check if the email address is correct;
2. Resend a new verification code.
Username or password incorrect.
1. Check if the username or password is correct; 2. Reset your password.
Server failure.
Please try later due to server maintenance.
The device is not connected to Internet
Please confirm whether WiFi network is working normally or network connection is successful.
The serial number and activation code are entered incorrectly
Please check and confirm whether the serial number and activation code are correctly entered (12 digits for serial number and 8 digits for activation code).
Activation code is invalid
Please contact THINKCAR service team or regional sales.
Prompt that the configuration is empty
Please contact THINKCAR service team or regional sale.
When the software is upgraded, it prompts that it is not activated.
The diagnostic VCI may not be activated during registration. Please use the serial number and activation code in the password envelope to activate the device. The operation steps are as follows: Click [Settings]-[VCI Activation], and enter the correct serial number and activation code in the interface, and click [Activate]. If you have any questions, please contact after-sales customer service.
The device is not connected to Internet
Please confirm whether WiFi network is working normally or network connection is successful.
Insufficient storage space
Please uninstall irrelevant applications: select and delete uncommon software in “Software cleaning module” under “Settings” menu.
Server problem
Server under maintenance. Please try again later.
Poor contact of vehicle OBD internal circuit
Please check if OBD pins are all in good conditions.
Vehicle battery heavily loss of electricity
Please recharge of replace the battery.
VCI damage
Please provide proof video to THINKCAR service team for processing.
How to save power?
1）Please sleep the screen，if the tablet isn’t been used. 2)Reduce screen standby time by setting. 3)Reduce the screen brightness by setting.
Where can I purchase a THINKCAR device?
Please contact your local dealers listed in www.thinkcar.com to buy THINKCAR tools.
Can I dis-active my diagnostic tools?
Cancellation of registration is not allowed.If there are any special circumstances, the dealer will submit the SN and application reason to the company to apply, and the dealer will assume that the customer complaint caused by the cancellation of the registration will be assumed by the dealer.
Can the account password be changed?
Modification is not allowed, customers are advised to modify by themselves by retrieving the password
