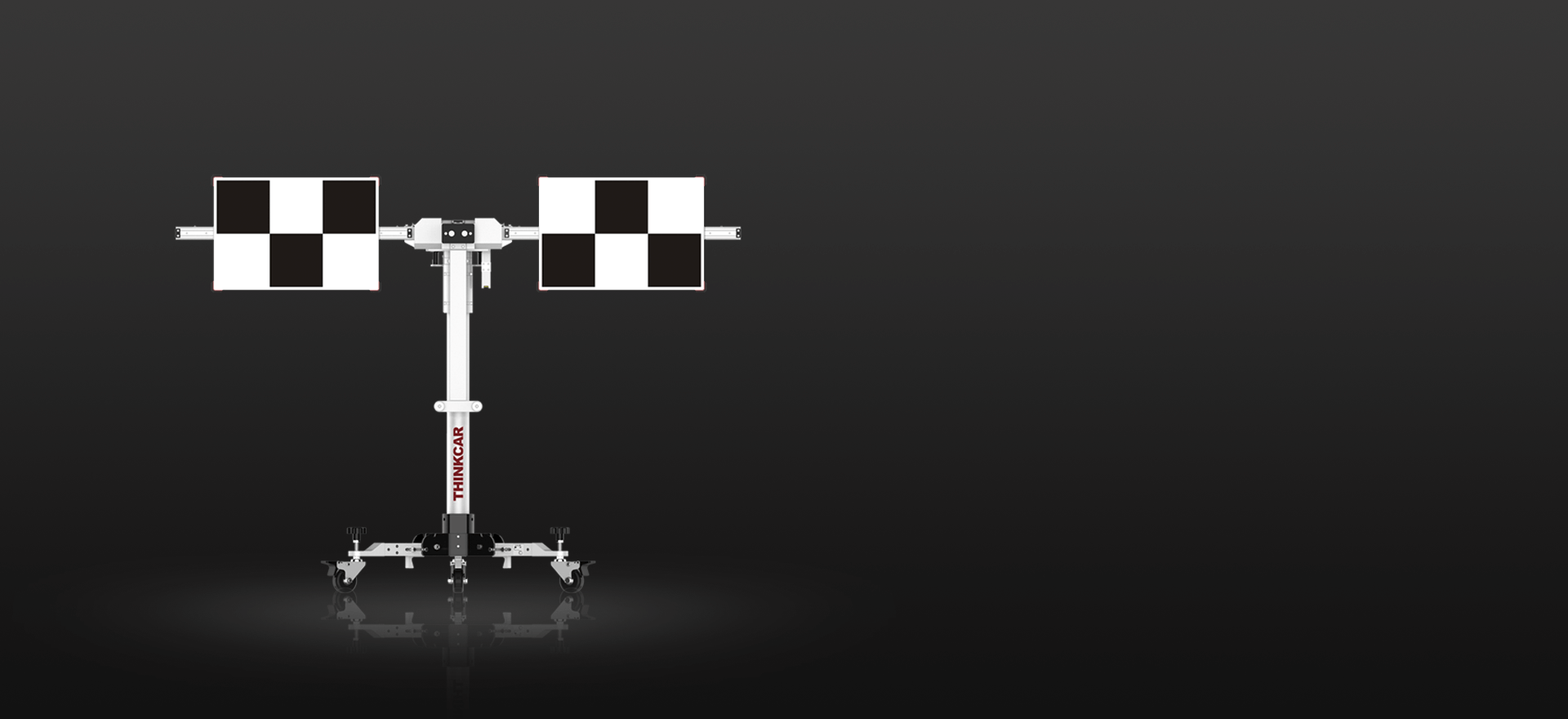

THINKCAR ADAS
Calibration Kit
An Intelligent Way To Calibrate Your ADAS, Easier and More accurate!
system function
THINKCAR ADAS Calibration Kit is a portable ADAS calibration device developed by THINKCAR. It uses five-wire and cross laser instrument to assist in centering and positioning, which is more accurate. THINKCAR ADAS(Advanced Driving Assistance System) integrates ACC, LDW, AVM, BSD system calibrations function.
AVM
The panoramic surround view system sets up 4 to 8 wide-angle cameras around the car that can cover all the field of view around the car, and processes the multiple video images collected at the same time into a 360-degree top view of the car’s surroundings. The display on the screen allows the driver to clearly check whether there are obstacles around the vehicle and understand the relative position and distance of the obstacles, helping the driver to park the vehicle easily. Some cars can realize 3D perspective.

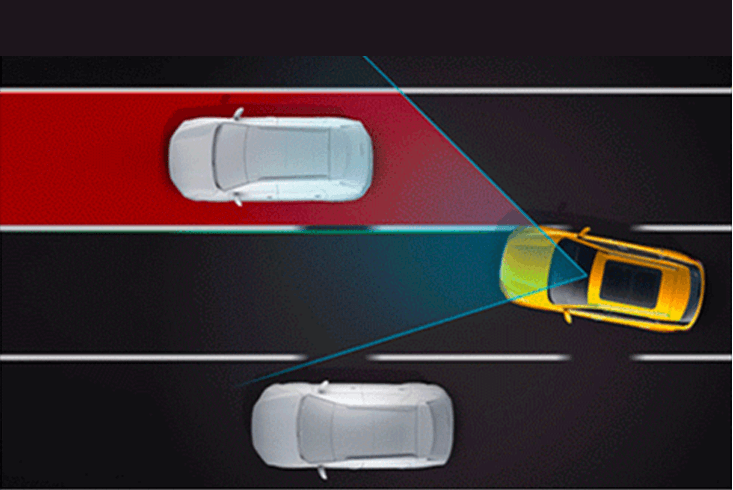

BSD
The blind spot monitoring system uses sensors (visual sensors, millimeter wave radar) installed at the rear or side of the vehicle to detect incoming vehicles or pedestrians. The electronic control unit analyzes and processes the information collected by the sensors. If there are vehicles or pedestrians in the blind area, The display unit will notify the driver by sounding an alarm or displaying an alarm message in the rear view mirror.
LDW
The lane departure warning( LDW) is a system that assists the driver in reducing traffic accidents due to lane departure by warning; these functions are realized by the front camera, and some mid-to-high-end cars are also equipped with road standard recognition functions.

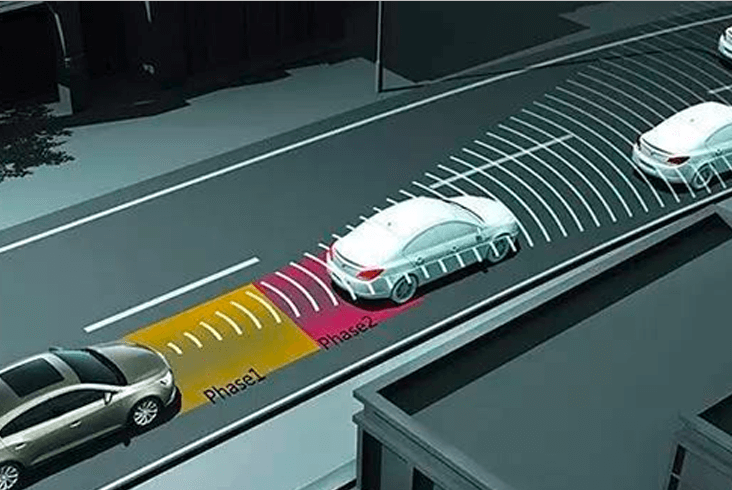

ACC
Adaptive cruise is a comfortable driving assistance function. If the front of the vehicle is clear, the adaptive cruise (ACC) will maintain the set maximum cruise speed and move forward. If it detects a vehicle ahead, the adaptive cruise (ACC) will reduce the speed as needed, and keep distance with front vehicles until the appropriate cruising speed is reached.
compatible
THINKCAR ADAS is compatible with THINKTOOL MASTER,THINKTOOL MASTER X, THINKTOOL MAX diagnostic equipment to meet the daily calibration need of auto repair shops and class shops
security convenient excellent
03

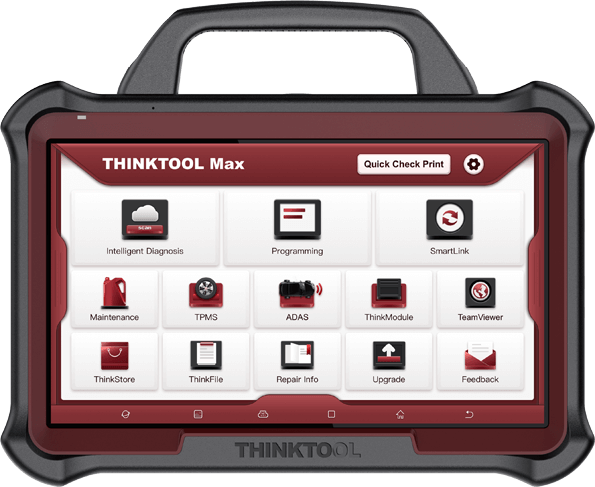

THINKTOOL max
13 INCHES PROGRAMMING TOOL
01

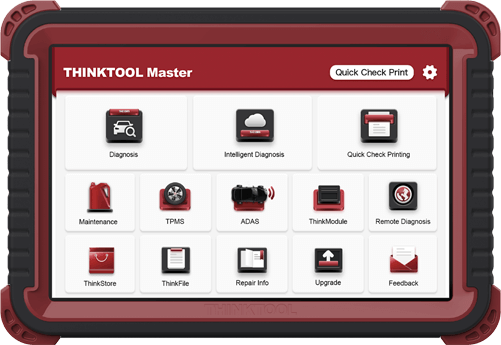

THINKTOOL MASTER
Advanced Professional Automotive Diagnostic Tool with Programming
02
THINKTOOL MASTER x
OE LEVEL PROFESSIONAL DIAGNOSTIC TOOL FOR BOTH PASSENGER AND COMMERCIAL VEHICLES

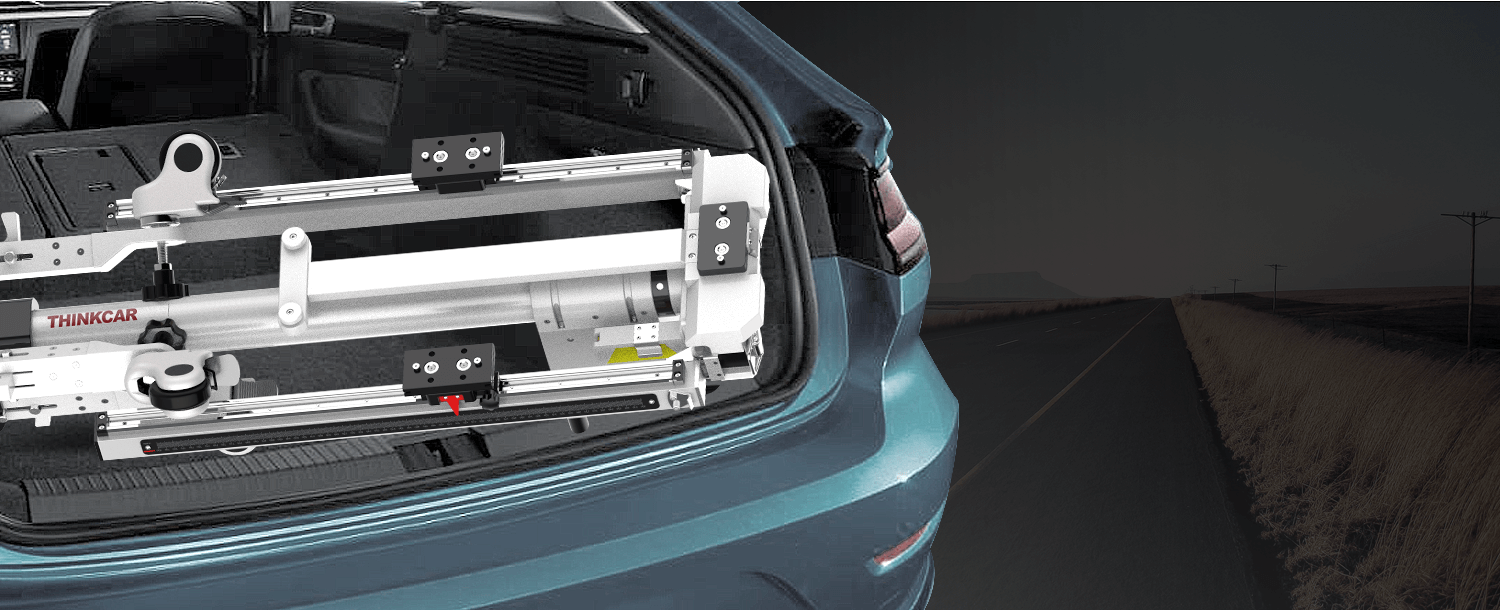

Unique Fully Fordable Design
THINKCAR ADAS calibration Kit is easy to fold and assemble, easy to carry.
Dynamic and Static Calibration
THINKCAR ADAS support static calibration by calibrating the main frame and target pattern, or initiate the learning process through the calibration software in the diagnostic equipment for
dynamic calibration.
Accessories
Comparisons
Specifications
FAQ
Insufficient contact of VCI with vehicle OBD port
Please replug the VCI.
Unfix the firmware.
Click “settings” and then “firmware repair” icon to upgrade the firmware.
Bad contact of the VCI
Please reinsert the VCI and try again.
Problem with Bluetooth pairing.
Please cancel the Bluetooth pairing of the diagnostic VCI and re-use the software to automatically pair the VCI.
The diagnostic tablet is left unused for a long time and the battery runs out of power.
Boot by long-pressing the ON/OFF button after 2 hours charging.
Adapter failure.
Please confirm whether the adapter is properly connected to power supply, or the interface contact is in the right place.
No network on the diagnostic tablet.
Check if the diagnostic tablet is connected to good network.
Get prompted that the email address has been signed up.
1. Sign up a new account;2. Retrieve the password and sign in with the original account.
Fail to receive the verification code during sign-up.
1. Check if the email address is correct;
2. Resend a new verification code.
Username or password incorrect.
1. Check if the username or password is correct; 2. Reset your password.
Server failure.
Please try later due to server maintenance.
The device is not connected to Internet
Please confirm whether WiFi network is working normally or network connection is successful.
The serial number and activation code are entered incorrectly
Please check and confirm whether the serial number and activation code are correctly entered (12 digits for serial number and 8 digits for activation code).
Activation code is invalid
Please contact THINKCAR service team or regional sales.
Prompt that the configuration is empty
Please contact THINKCAR service team or regional sale.
When the software is upgraded, it prompts that it is not activated.
The diagnostic VCI may not be activated during registration. Please use the serial number and activation code in the password envelope to activate the device. The operation steps are as follows: Click [Settings]-[VCI Activation], and enter the correct serial number and activation code in the interface, and click [Activate]. If you have any questions, please contact after-sales customer service.
The device is not connected to Internet
Please confirm whether WiFi network is working normally or network connection is successful.
Insufficient storage space
Please uninstall irrelevant applications: select and delete uncommon software in “Software cleaning module” under “Settings” menu.
Server problem
Server under maintenance. Please try again later.
Poor contact of vehicle OBD internal circuit
Please check if OBD pins are all in good conditions.
Vehicle battery heavily loss of electricity
Please recharge of replace the battery.
VCI damage
Please provide proof video to THINKCAR service team for processing.
How to save power?
1）Please sleep the screen，if the tablet isn’t been used. 2)Reduce screen standby time by setting. 3)Reduce the screen brightness by setting.
Where can I purchase a THINKCAR device?
Please contact your local dealers listed in www.thinkcar.com to buy THINKCAR tools.
Can I dis-active my diagnostic tools?
Cancellation of registration is not allowed.If there are any special circumstances, the dealer will submit the SN and application reason to the company to apply, and the dealer will assume that the customer complaint caused by the cancellation of the registration will be assumed by the dealer.
Can the account password be changed?
Modification is not allowed, customers are advised to modify by themselves by retrieving the password
